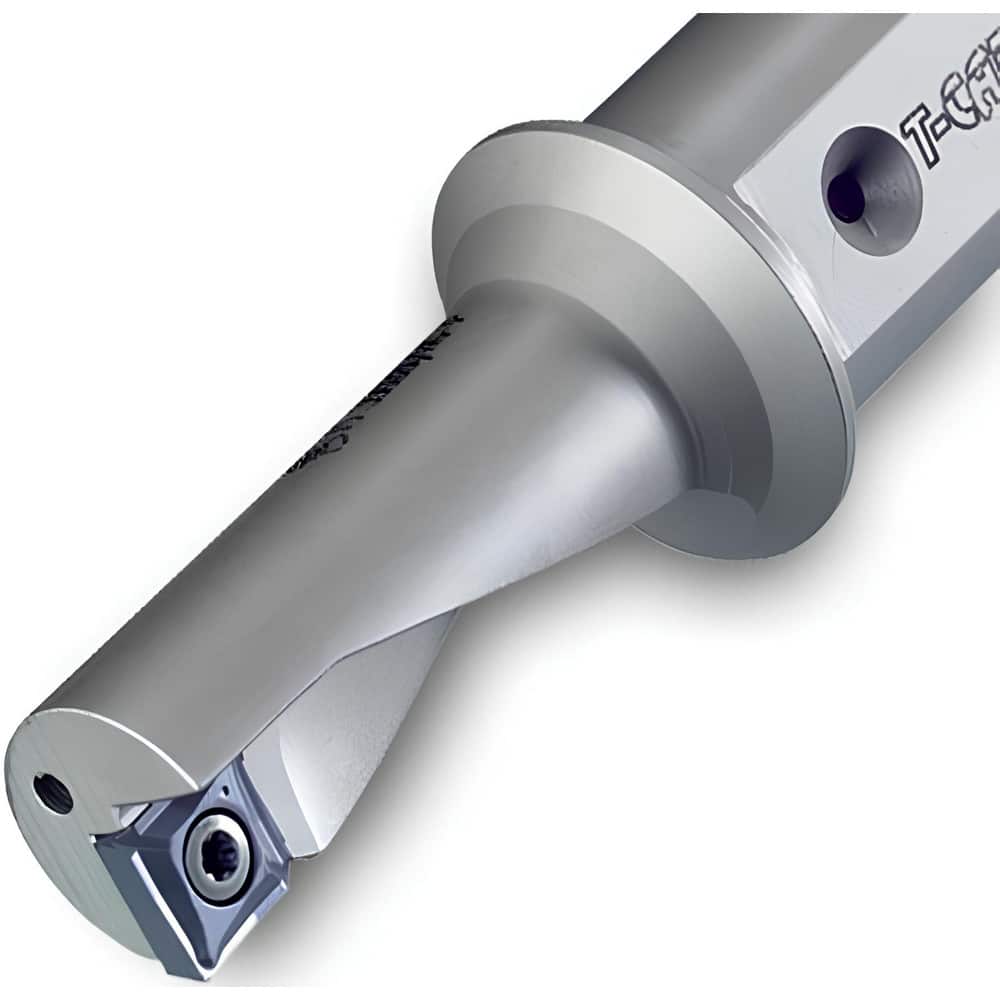

Indexable Insert Drills; Drill Style: TCAP; Maximum Drill Diameter (mm): 16.00; Drill Diameter (Decimal Inch): 0.6300; Maximum Drill Diameter (Decimal Inch): 0.6300; Drill Diameter (mm): 16.00; Maximum Drill Depth (Decimal Inch): 1.4200; Maximum Drill Dep
Item #: 98074461
Brand: Ingersoll Cutting Tools
Model #: 3203775
Product Specifications
| Drill Style | TCAP |
| Maximum Drill Diameter (mm) | 16.00 |
| Drill Diameter (Decimal Inch) | 0.6300 |
| Maximum Drill Diameter (Decimal Inch) | 0.6300 |
| Drill Diameter (mm) | 16.00 |
| Maximum Drill Depth (Decimal Inch) | 1.4200 |
| Maximum Drill Depth (mm) | 36.07 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Compatible Insert Style | XCGT; XCMT |
| Compatible Insert Size Code | 250020; 080304 |
| Drill Depth by Diameter Ratio | 2.25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 3.7000 |
| Overall Length (mm) | 93.9800 |
| Series | TCAP |
| Flute Length (Decimal Inch) | 1.4200 |
| Flute Length (mm) | 36.07 |
| Body Length | 43.430 |
| Body Length (Decimal Inch) | 1.7100 |
| Shank Length (Decimal Inch) | 1.9700 |
| Shank Length (mm) | 50.040 |
| Coolant Hole Thread Size | 1/8 NPT |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Overall Length/Projection (Decimal Inch) | 3.7000 |
| Overall Length/Projection (mm) | 93.98 |
| Insert Compatibility | XCGT080304TA; XCMT08R-250020GV; XCMT080304TC |
| Torx Wrench | T9 |
| Insert Lock Screw | TS30100I/HG-P |
| Extension From Holder (Inch) | 1.7100 |
| Coolant Through | Coolant Through |
 | |
| MSC Part # | 98074461 |
| Mfr Part # | 3203775 |
| Country of OriginCountry of Origin is subject to change | South Korea |
