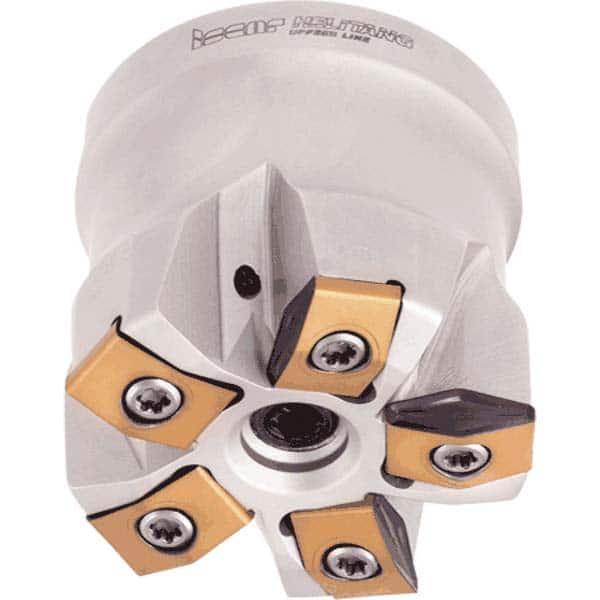

Iscar - Indexable High-Feed Face Mills; Cutting Diameter (Decimal Inch): 2.5000 ; Maximum Depth of Cut (Decimal Inch): 0.0590 ; Arbor Hole Diameter (Decimal Inch): 1.0000 ; Overall Height (Inch): 1-3/4 ; Series: FFV ; Cutter Style: FFV
Item #: 97791362
Brand: Iscar
Model #: 3346895
Product Specifications
Indexable High-Feed Face Mills; Cutting Diameter (Decimal Inch): 2.5000 ; Maximum Depth of Cut (Decimal Inch): 0.0590 ; Arbor Hole Diameter (Decimal Inch): 1.0000 ; Overall Height (Inch): 1-3/4 ; Series: FFV ; Cutter Style: FFV
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Inch) | 1-3/4 |
| Series | FFV |
| Cutter Style | FFV |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | FF VNMT 0706ZN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 6500 |
| Number of Flutes | 6 |
| Maximum Body Diameter (Decimal Inch) | 2.2520 |
| Maximum Body Diameter (mm) | 57.20 |
| Through Coolant | Yes |
