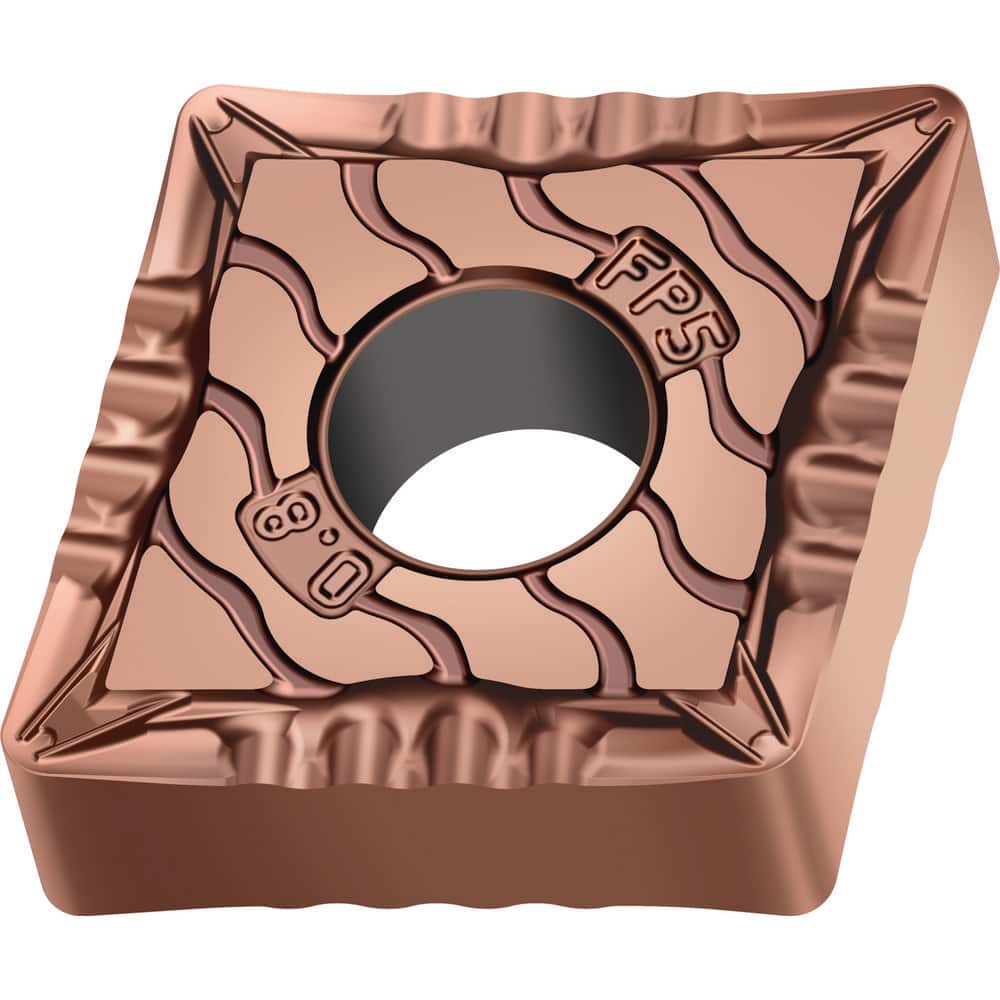

Turning Insert: CNMG431-FP5 WEP10C, Cermet TiCN & TiAlN Finish, Neutral, 0.5080″ Long, 1/2″ Inscribed Circle, 0.0160″ Corner Radius, 80.00 ° N/A Diamond, Series CNMG-FP5
Item #: 97478374
Brand: Walter
Model #: 8136981
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 431 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Cermet |
| Manufacturer Grade | WEP10C |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.5080 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 80.00 |
| Relief Angle | 0.000 |
| Series | CNMG-FP5 |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.5080 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Ansi Code | CNMG431FP5WEP10C |
| Iso Code | CNMG120404-FP5 WEP10C |
| Chip Breaker | FP5 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (Mm - 2 Decimals) | 12.70 |
| Coating/Finish | TiCN; TiAlN |
 | |
| MSC Part # | 97478374 |
| Mfr Part # | 8136981 |
| Country of OriginCountry of Origin is subject to change | Germany |
