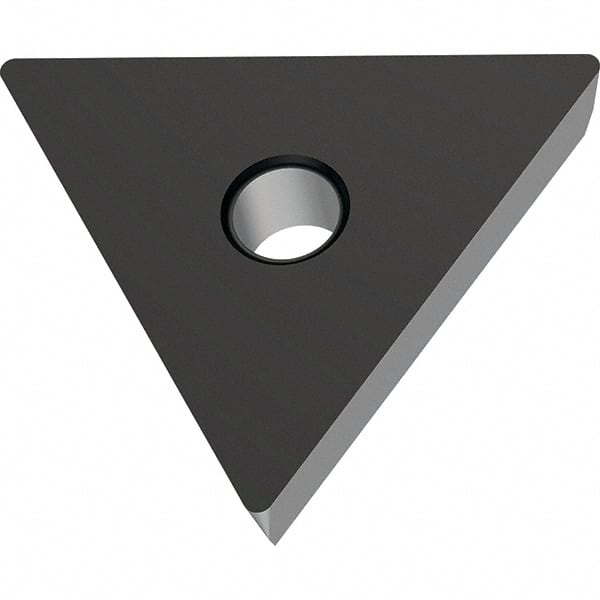

Turning Insert [DELETE]
Item #: 97042071
Brand: Walter
Model #: 7469040
Product Specifications
| Insert Style | TPGN |
| Insert Shape Code | T |
| Insert Size Code | 160304 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | G |
| Manufacturer Grade | WPP20S |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | TPGN321WPP20S |
| Iso Code | TPGN160304 WPP20S |
| Standards | ISO; ANSI |
| Chip Breaker | N |
