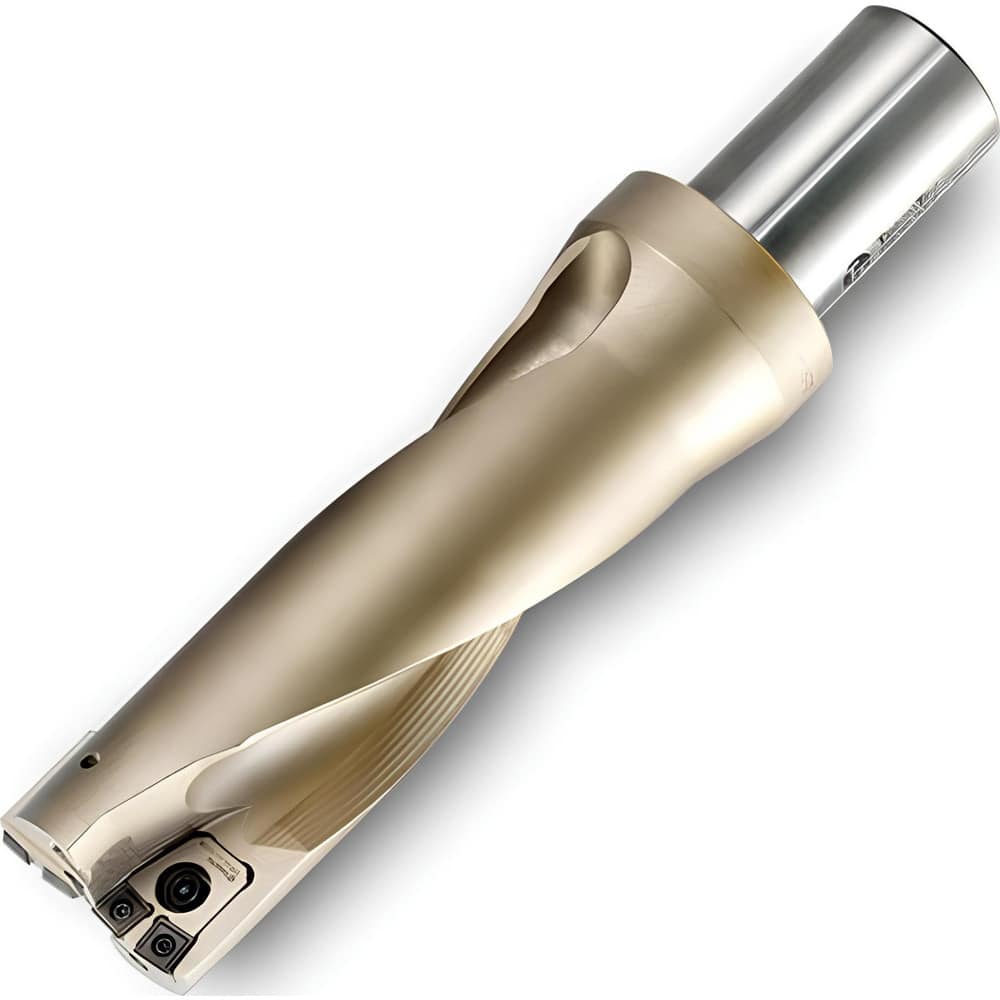

Indexable Insert Drills; Drill Style: QA; Maximum Drill Diameter (Inch): 2-3/16; Drill Diameter (Decimal Inch): 2.1880; Maximum Drill Diameter (Decimal Inch): 2.1880; Drill Diameter (Inch): 2-3/16; Maximum Drill Depth (Inch): 6-39/64; Maximum Drill Depth
Item #: 96844485
Brand: Ingersoll Cutting Tools
Model #: 6181182
Product Specifications
| Drill Style | QA |
| Maximum Drill Diameter (Inch) | 2-3/16 |
| Drill Diameter (Decimal Inch) | 2.1880 |
| Maximum Drill Diameter (Decimal Inch) | 2.1880 |
| Drill Diameter (Inch) | 2-3/16 |
| Maximum Drill Depth (Inch) | 6-39/64 |
| Maximum Drill Depth (Decimal Inch) | 6.6100 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Drill Inserts | 4 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Compatible Insert Style | SPLT; SDGT |
| Compatible Insert Size Code | 07T308 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 11.4400 |
| Overall Length (mm) | 290.5800 |
| Series | QA |
| Flute Length (Decimal Inch) | 6.6100 |
| Flute Length (mm) | 167.89 |
| Body Length | 208.030 |
| Body Length (Decimal Inch) | 8.1900 |
| Shank Length (Decimal Inch) | 3.2500 |
| Shank Length (mm) | 82.550 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Overall Length/Projection (Decimal Inch) | 11.4400 |
| Overall Length/Projection (mm) | 290.58 |
| Insert Compatibility | SDGT07T308-HP; SPLT07T308N; SPLT07T308N-PH |
| Collar Diameter (Decimal Inch) | 2.3700 |
| Collar Diameter (mm) | 60.20 |
| Torx Wrench | T6; T8 |
| Insert Lock Screw | SM25-064-00; SM20-043-00 |
| Extension From Holder (Inch) | 8.1900 |
| Coolant Through | Coolant Through |
 | |
| MSC Part # | 96844485 |
| Mfr Part # | 6181182 |
| Country of OriginCountry of Origin is subject to change | South Korea |
