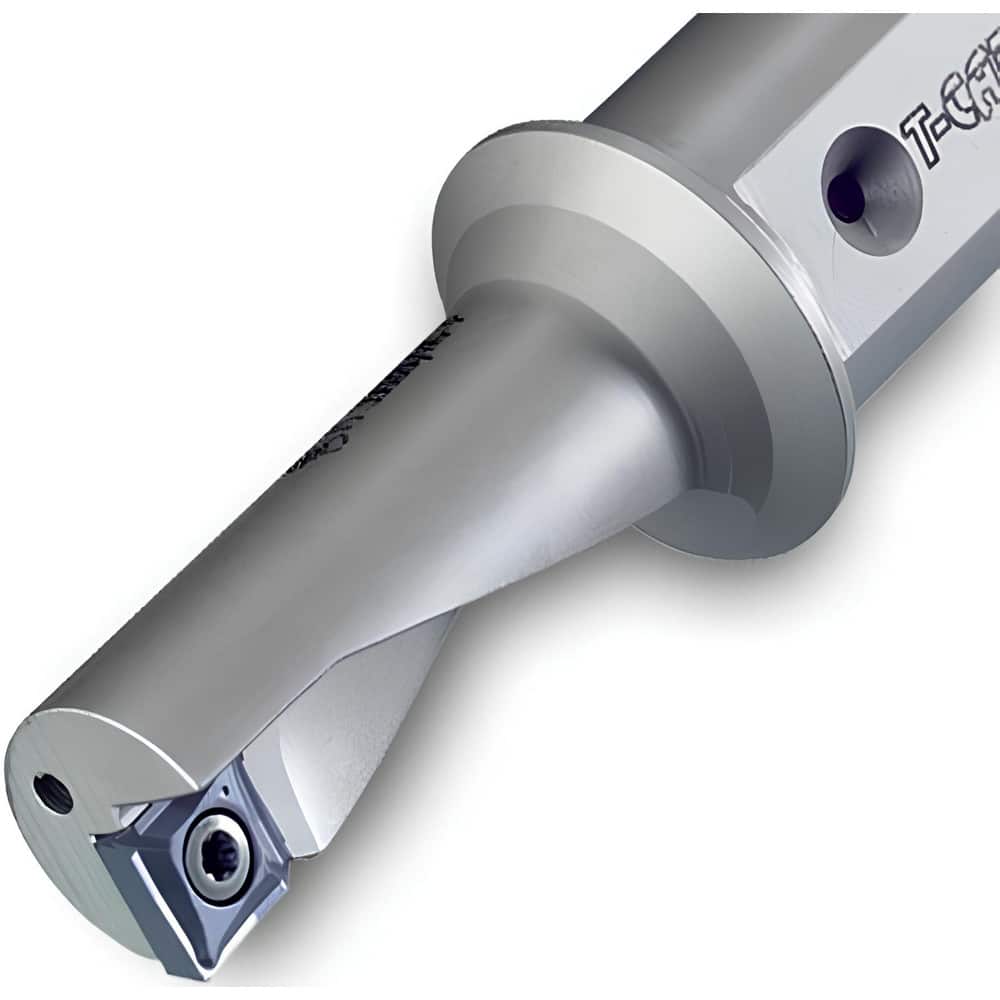

Indexable Insert Drills; Drill Style: TCAP; Maximum Drill Diameter (mm): 11.99; Drill Diameter (Decimal Inch): 0.4720; Maximum Drill Diameter (Decimal Inch): 0.4720; Drill Diameter (mm): 11.99; Maximum Drill Depth (Decimal Inch): 1.0600; Maximum Drill Dep
Item #: 96843214
Brand: Ingersoll Cutting Tools
Model #: 3204059
Product Specifications
| Drill Style | TCAP |
| Maximum Drill Diameter (mm) | 11.99 |
| Drill Diameter (Decimal Inch) | 0.4720 |
| Maximum Drill Diameter (Decimal Inch) | 0.4720 |
| Drill Diameter (mm) | 11.99 |
| Maximum Drill Depth (Decimal Inch) | 1.0600 |
| Maximum Drill Depth (mm) | 26.92 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Left Hand |
| Tool Material | Steel |
| Compatible Insert Style | XCGT; XCMT |
| Compatible Insert Size Code | 060204 |
| Drill Depth by Diameter Ratio | 2.25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 3.0700 |
| Overall Length (mm) | 77.9800 |
| Series | TCAP |
| Flute Length (Decimal Inch) | 1.0600 |
| Flute Length (mm) | 26.92 |
| Body Length | 32.510 |
| Body Length (Decimal Inch) | 1.2800 |
| Shank Length (Decimal Inch) | 1.7700 |
| Shank Length (mm) | 44.960 |
| Coolant Hole Thread Size | 1/8 NPT |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Overall Length/Projection (Decimal Inch) | 3.0700 |
| Overall Length/Projection (mm) | 77.98 |
| Insert Compatibility | XCMT060204TC; XCGT060204TA |
| Torx Wrench | T7 |
| Insert Lock Screw | TS22052I/HG-P |
| Extension From Holder (Inch) | 1.2800 |
| Coolant Through | Coolant Through |
 | |
| MSC Part # | 96843214 |
| Mfr Part # | 3204059 |
| Country of OriginCountry of Origin is subject to change | South Korea |
