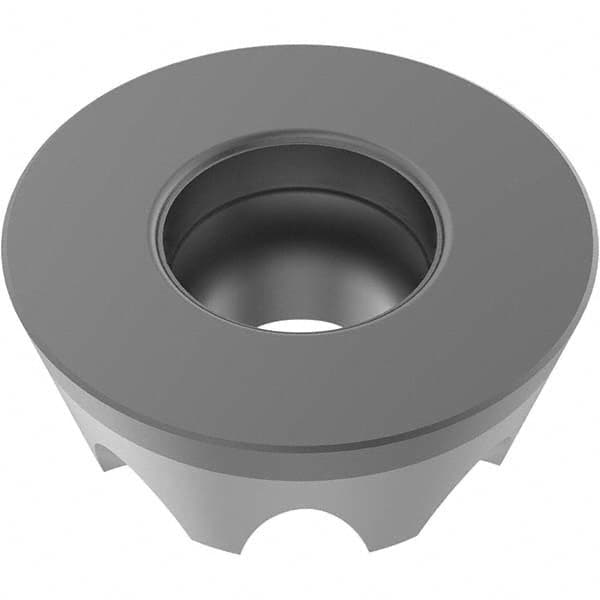

RDHW10T3M0S-01030-8-LF PCBN Milling Insert Uncoated, 3.97mm Thick x 10mm Wide
Item #: 96219399
Brand: Seco
Model #: 03289790
Product Specifications
| Insert Style | RDHW |
| Insert Size Code | RDHW10 |
| Insert Size | 10T3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CBN200 |
| Inscribed Circle (mm) | 10.00 |
| Corner Radius (mm) | 5.00 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Coating Process | Uncoated |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Maximum Depth of Cut (mm) | 5.00 |
| Number Of Cutting Edges | 11 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | OD |
| Iso Code | RDHW10T3M0S-01030-8-LF |
| Standards | ISO |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | RDHW10T3M0S-01030-8-LF |
| Cutter Series Compatibility | R217.29; R220.29 |
| Chip Breaker | LF |
| Shape | Round |
| Thickness (mm) | 3.97 |
| Coating/Finish | Uncoated |
| Width (Mm - 2 Decimals) | 10.00 |
