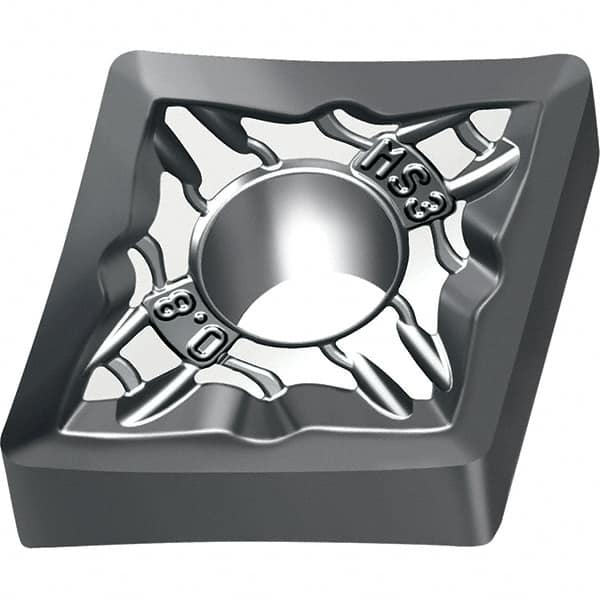

Turning Insert [DELETE]
Item #: 95747093
Brand: Walter
Model #: 7469057
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 120 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM30S |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Superalloy; Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | CNMG431MS3WSM30S |
| Iso Code | CNMG120404-MS3 WSM30S |
| Standards | ISO; ANSI |
| Chip Breaker | MS |
| Coating/Finish | Coated |
