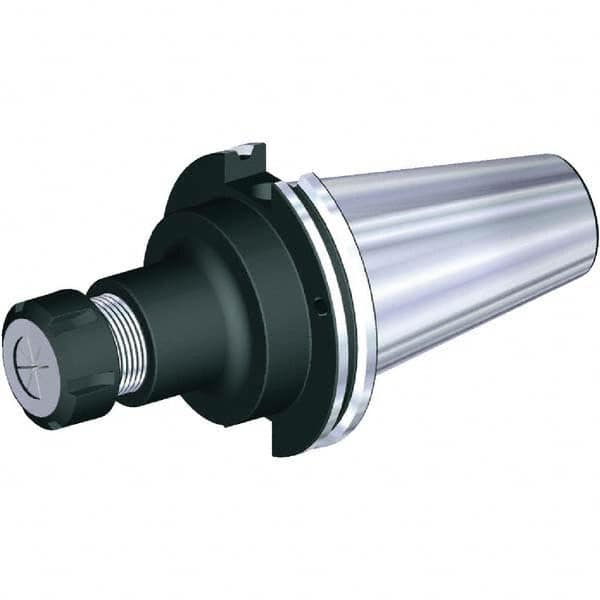

Collet Chuck: 1 to 13 mm Capacity, ER Collet, Taper Shank 4″ Projection, Balanced to 20,000 RPM, Through Coolant
Item #: 94880465
Brand: Kennametal
Model #: 6693876
Product Specifications
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Taper |
| Taper Size | CV40 |
| Projection (Decimal Inch - 4 Decimals) | 4.0000 |
| Projection (Inch) | 4 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 13.00 |
| Overall Length (mm) | 169.85 |
| Maximum RPM | 20000 |
| Shank Diameter (Inch) | 1-3/4 |
| Shank Length (mm) | 38.25 |
