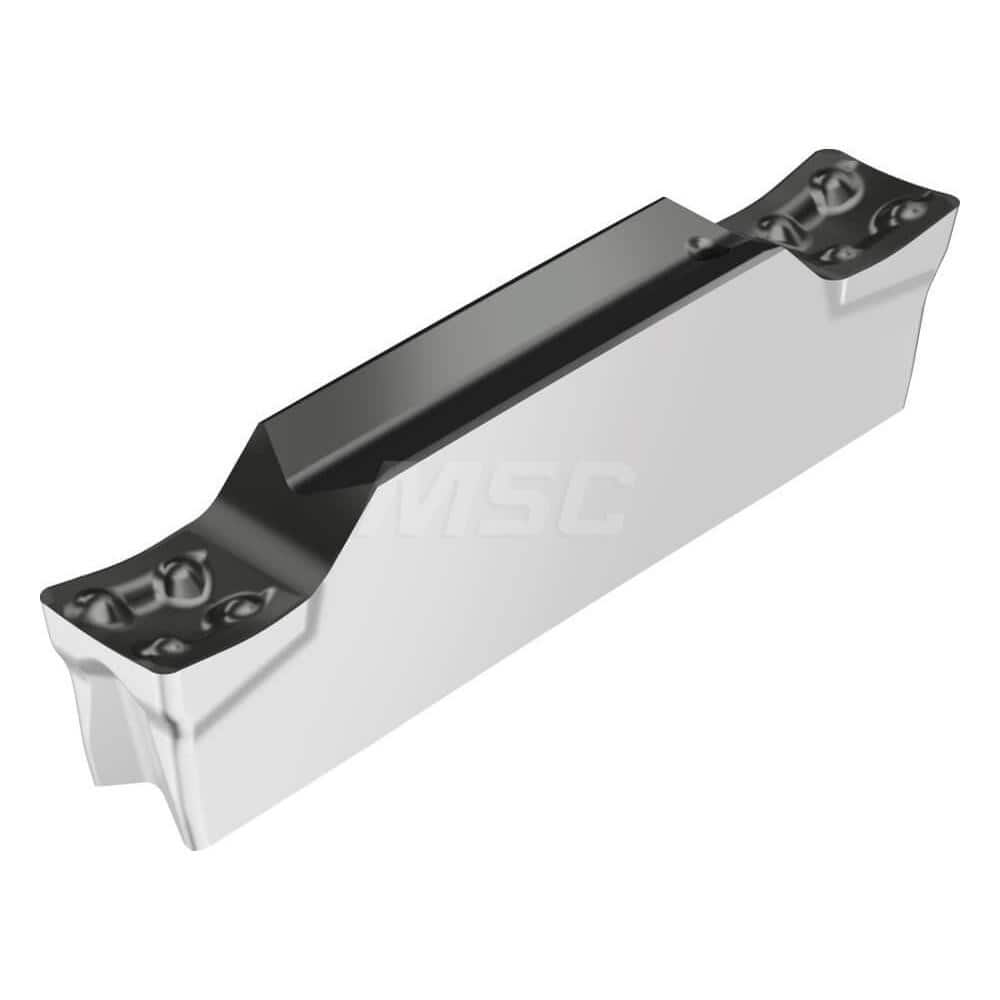

Grooving Insert: DX18GD3 WSM33S, Solid Carbide Al Finish, Neutral, 0.079″ Cutting Width, Series DX-E-GD3
Item #: 94645470
Brand: Walter
Model #: 7910376
Product Specifications
| Insert Style | DX18 |
| Insert Size Code | 2E200N02 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM33S |
| Cutting Width (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 17.00 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0080 |
| Lead Angle | 0 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | DX-E-GD3 |
| Coating Process | PVD |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | DX182E200N02GD3 WSM33S |
| Iso Code | DX182E200N02GD3 WSM33S |
| Standards | ISO; ANSI |
| Chip Breaker | GD3 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0790 |
| Coating/Finish | Al |
