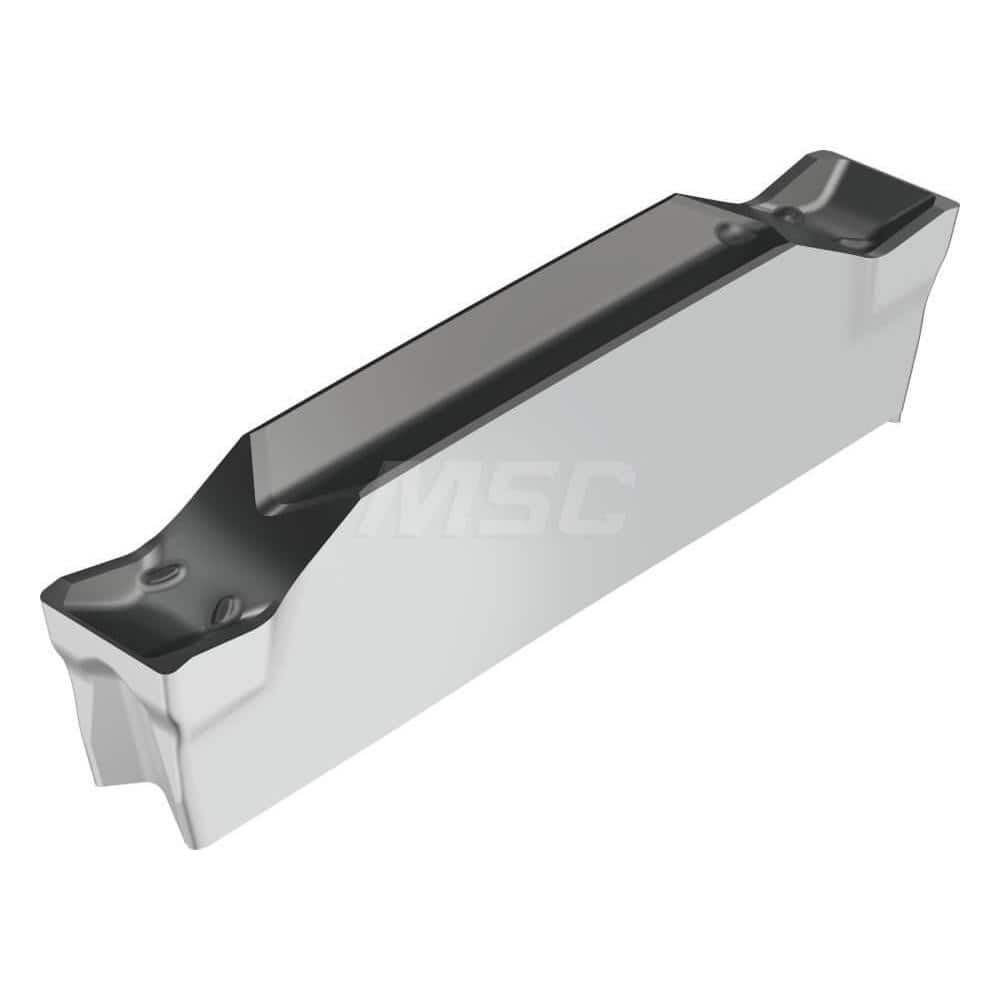

Grooving Insert: DX18CE4 WKP23S, Solid Carbide Al2O3 & TiCN Finish, Neutral, 0.079″ Cutting Width, Series DX-E-CE4
Item #: 94645025
Brand: Walter
Model #: 7795854
Product Specifications
| Insert Style | DX18 |
| Insert Size Code | 2E200N02 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WKP23S |
| Cutting Width (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 17.00 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0080 |
| Lead Angle | 0 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | DX-E-CE4 |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | DX182E200N02CE4 WKP23S |
| Iso Code | DX182E200N02CE4 WKP23S |
| Standards | ISO; ANSI |
| Chip Breaker | CE4 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0790 |
| Coating/Finish | TiCN; Al2O3 |
