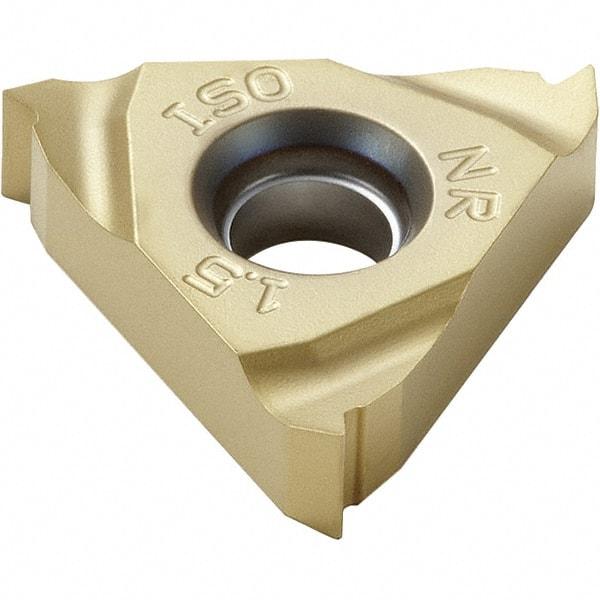

Seco - 11NR Internal Right Hand ISO Laydown Threading Insert - Grade TTP2050, TiAlN/TiSiN Coated Carbide
Item #: 94588464
Brand: Seco
Model #: 03245433
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 11NR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | ISO |
| Material Grade | Micrograin |
| Manufacturer's Grade | TTP2050 |
| Internal Pitch (mm) | 2 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.1181 |
| Included Angle of Threading Tip | 60 |
| Hole Diameter (mm) | 3.00 |
| Coating | TiAlN/TiSiN |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0070 |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.430 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.027 |
| Chipbreaker | A |
| Number of Teeth Per Side | 3 |
| Insert Size | 11 |
