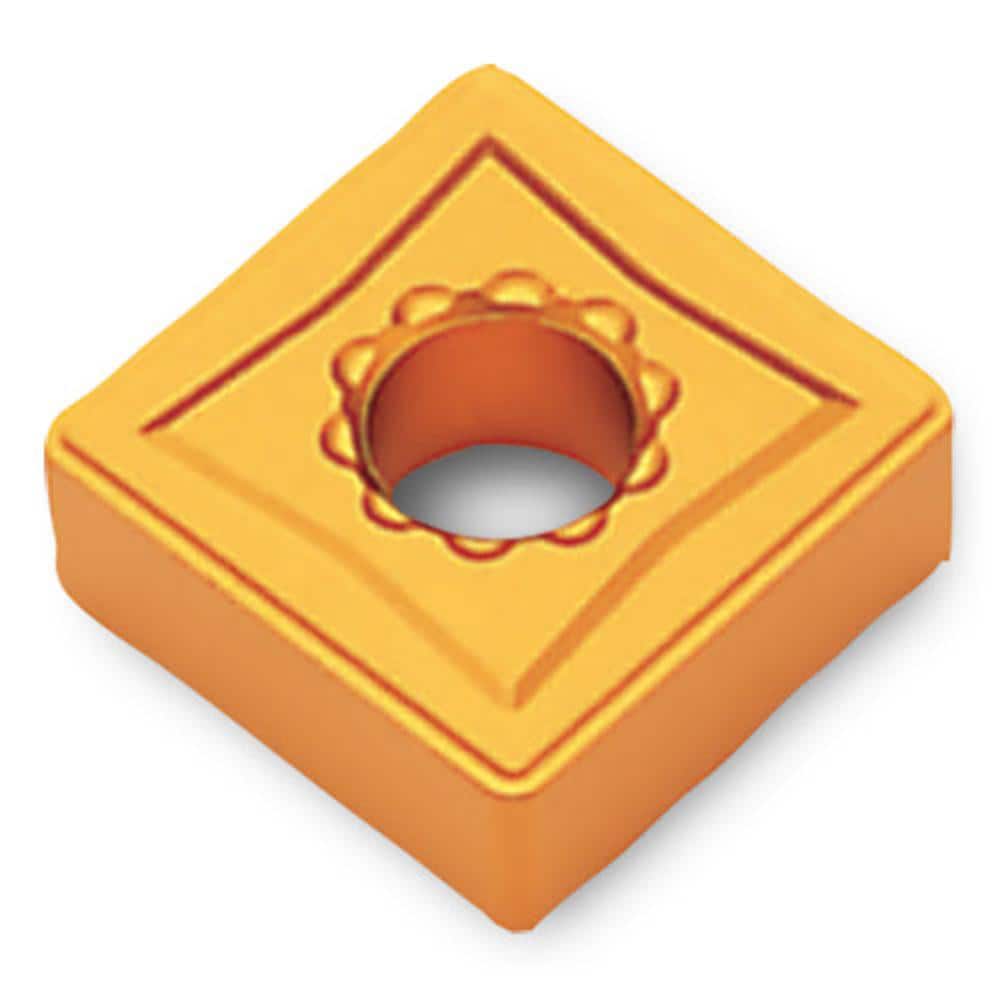

Turning Insert: SNMG432RT TT7015, Solid Carbide TiCN & Al2O3 Finish, Neutral, 0.4690″ Long, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, 90.0 ° N/A Square, Series SNMG
Item #: 94451481
Brand: Ingersoll Cutting Tools
Model #: 5523596
Product Specifications
| Insert Style | SNMG |
| Insert Shape Code | S |
| Insert Size Code | 432 |
| Insert Shape | Square |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT7015 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | SNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4690 |
| Number Of Cutting Edges | 8 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SNMG432RTTT7015 |
| Iso Code | SNMG120408RT TT7015 |
| Chip Breaker | RT |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Coating/Finish | TiCN; Al2O3 |
