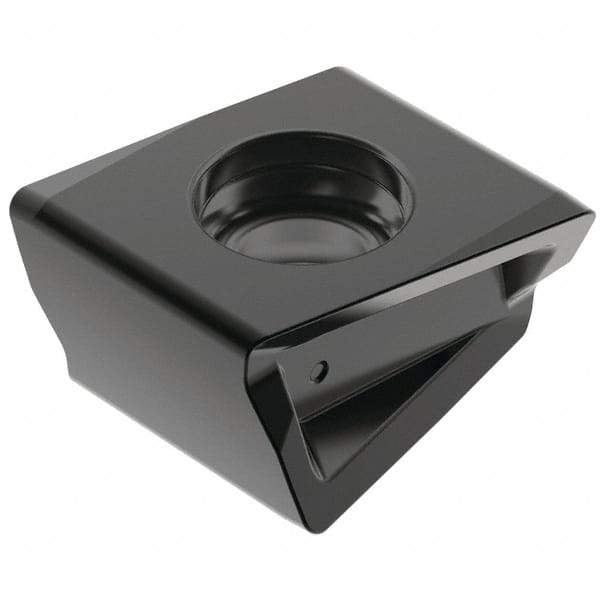

Kennametal - LNGQ120620 GE Grade KCK20 Carbide Milling Insert - TiN Coated, 1/4" Thick, 4.9mm Inscribed Circle
Item #: 94275674
Brand: Kennametal
Model #: 6525700
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNGQ |
| Insert Size | 120620 |
| Material | Carbide |
| Manufacturer's Grade | KCK20 |
| Coating | TiN |
| Width (mm) | 13.02 |
| Length (mm) | 13.00 |
| Inscribed Circle (mm) | 4.90 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Inch) | 5/64 |
| Primary Workpiece Material | K |
| Hole Diameter (mm) | 4.90 |
| Relief Angle | 0.000 |
| Coating Process | MTCVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | GE |
| Manufacturers Catalog Number | LNGQ120620ERGEKT4 |
