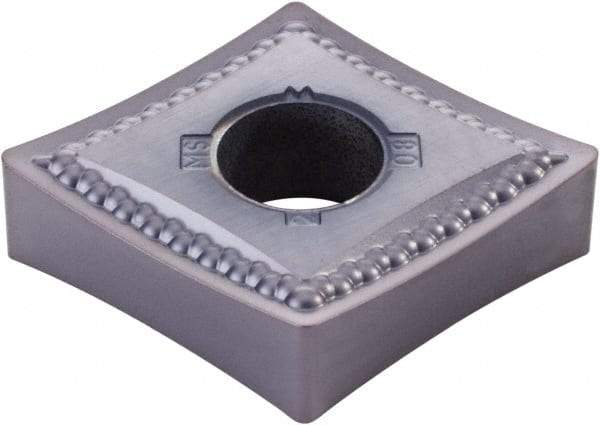

Kennametal - CNMG642 MS Grade KCU25 Carbide Turning Insert - AlTiN Finish, 80° Diamond, 3/4" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 93953024
Brand: Kennametal
Model #: 4050466
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 642 |
| Material | Carbide |
| Length (mm) | 19.34 |
| Length (Decimal Inch) | 0.7616 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Chip Breaker | MS |
| Hole Diameter (mm) | 7.94 |
| Hole Diameter (Decimal Inch) | 0.3125 |
| ISO Number | CNMG190608MS |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Kenloc |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
