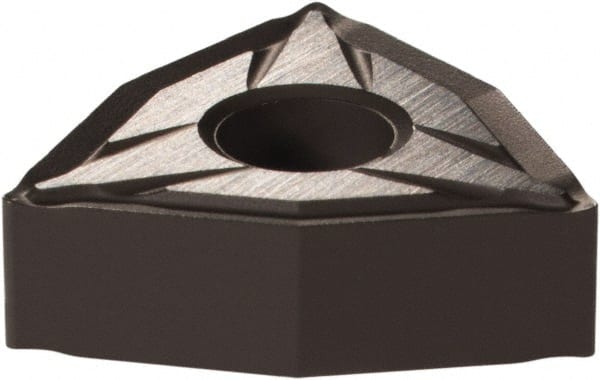

WNMG431-FF2 TP2500 Carbide Turning Insert 1/2″ Inscribed Circle, 1/64″ Corner Radius, Trigon
Item #: 93941896
Brand: Seco
Model #: 75053
Product Specifications
| Insert Style | WNMG |
| Insert Size Code | 431 |
| Insert Shape | Trigon |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TP2500 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Relief Angle | 0 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K; M |
| Manufacturers Catalog Number | WNMG 431-FF2 |
