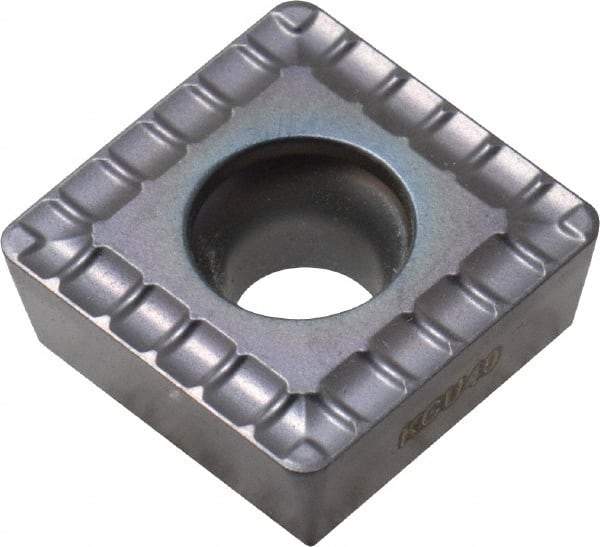

Kennametal - SPPX15T512 MD Grade KCU40 Carbide Indexable Drill Insert - TiN/TiAlN Finish, 0.619" Inscribed Circle
Item #: 93629681
Brand: Kennametal
Model #: 4042943
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiN/TiAlN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | SPPX |
| Insert Size | 15T512 |
| Material | Carbide |
| Manufacturer's Grade | KCU40 |
| Inscribed Circle (Decimal Inch) | 0.6190 |
| Thickness (Decimal Inch) | 0.2340 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Coating | TiN/TiAlN |
| Coating Process | PVD |
| Chipbreaker | MD |
