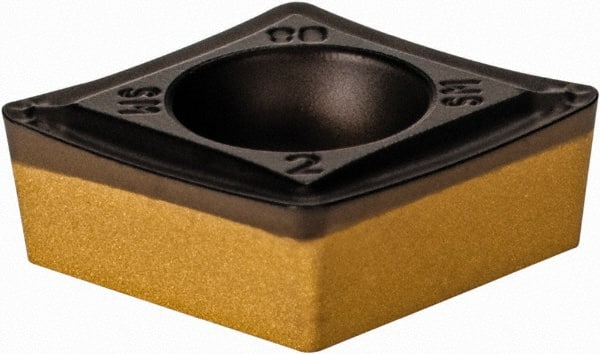

CCMT3-2SM IC8150 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 9.7mm Long, 3/8″ Inscribed Circle, 1/32″ Corner Radius, 80° Diamond, Series Isoturn
Item #: 93383883
Brand: Iscar
Model #: 5508203
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 3-2 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC8150 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.39 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | Isoturn |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3820 |
| Insert Length (mm) | 9.70 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Iso Code | CCMT 3-2-SM |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | CCMT 3-2-SM |
| Chip Breaker | SM |
| Single Or Double End | Single |
| Multi-Use Tool | Yes |
| Coating/Finish | TiCN; TiN; Al2O3 |
 | |
| MSC Part # | 93383883 |
| Mfr Part # | 5508203 |
