Jet - 9" Long x 49" Wide, 3 Phase Acu-Rite 2 Axis Millpower CNC Milling Machine - Variable Speed Pulley Control, R8 Taper - Industrial Tool & Supply

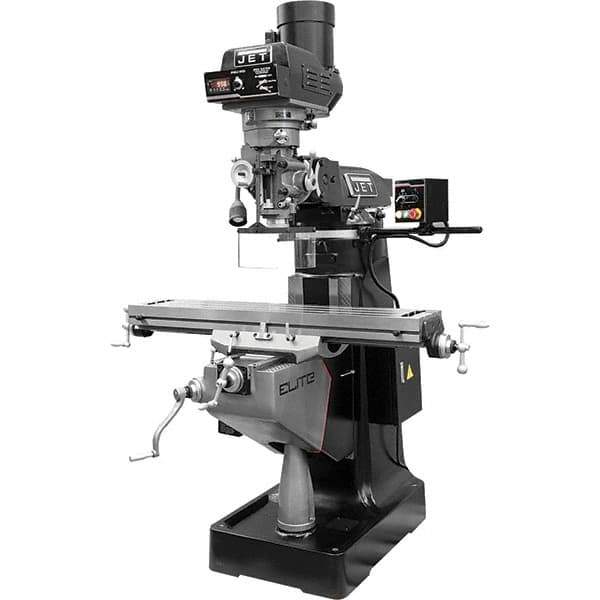

Jet - 9" Long x 49" Wide, 3 Phase Acu-Rite 2 Axis Millpower CNC Milling Machine - Variable Speed Pulley Control, R8 Taper


Item #: 92944461
Brand: Jet
Model #: 894090
Exact Tooling IR#: 04

Features and Benefits

Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications
Spindle Speed Control Variable Speed Pulley
CNC Controller Brand Acu-Rite
CNC Controller Model 2 Axis Millpower
Table Length (Decimal Inch) 9.0000
Table Width (Decimal Inch) 49.0000
Phase 3
Longitudinal Travel (Decimal Inch) 35.0000
Cross Travel (Decimal Inch) 12.0000
Knee Travel (Decimal Inch) 16.0000
Minimum Spindle Speed (RPM) 60.00
Spindle Travel Length (Decimal Inch) 5.0000
Spindle Taper Size R8
Quill Diameter (Decimal Inch) 3.3750
Minimum Spindle to Table Distance (Decimal Inch) 6.0000
Maximum Spindle To Column Distance (Decimal Inch) 19.0000
Number of T-Slots 4
Left-Hand Head Tilt (Degrees) 45.00
Right-Hand Head Tilt (Degrees) 90.00
Forward Head Tilt (Degrees) 90.00
Backward Head Tilt (Degrees) 90.00
Ram Travel Length (Decimal Inch) 13.3750
Includes Jet Elite Mill ETM-949EVS With 2-Axis ACU-RITE PWR CNC
Certification CSA/UL
Warranty Mfr's 3 Year Warranty
$52,172.01

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
