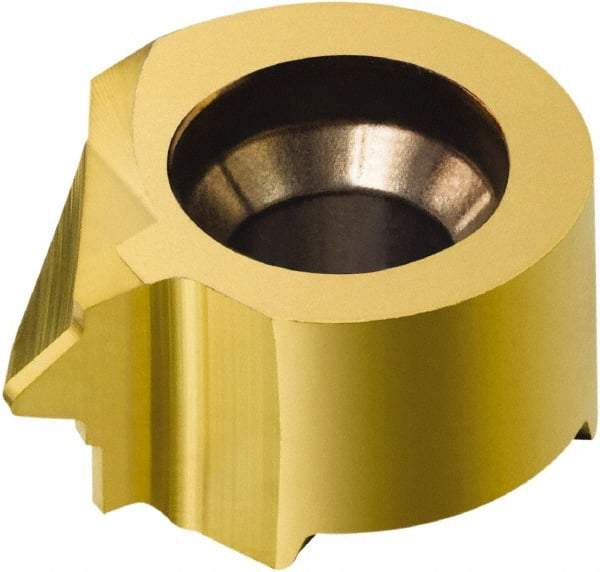

Sandvik Coromant - MB7 Grade 1025, Internal Whitworth Threading Insert - 11 TPI Int Pitch, Left Hand Insert, TiAlN/TiN Finish, Carbide
Item #: 92760941
Brand: Sandvik Coromant
Model #: 5735681
Exact Tooling IR#: 04
Features and Benefits
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB |
| Insert Size | 7 |
| Thread Type | Internal |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | Whitworth |
| Manufacturer's Grade | 1025 |
| Internal Pitch/TPI | 11 TPI |
| Coating | TiAlN/TiN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | MB07TH110WH10L1025 |
| Corner Radius (mm) | 0.31 |
| Corner Radius (Decimal Inch) | 0.0122 |
| Series | CoroCut MB |
| Included Angle of Threading Tip | 55 |
| Blade Width (mm) | 5.80 |
| Blade Width (Decimal Inch) | 0.2283 |
| Overall Length (Decimal Inch) | 0.1496 |
| Manufacturers Catalog Number | 5735681 |
| Maximum Depth of Cut (mm) | 1.48 |
| Maximum Depth of Cut (Decimal Inch) | 0.0583 |
