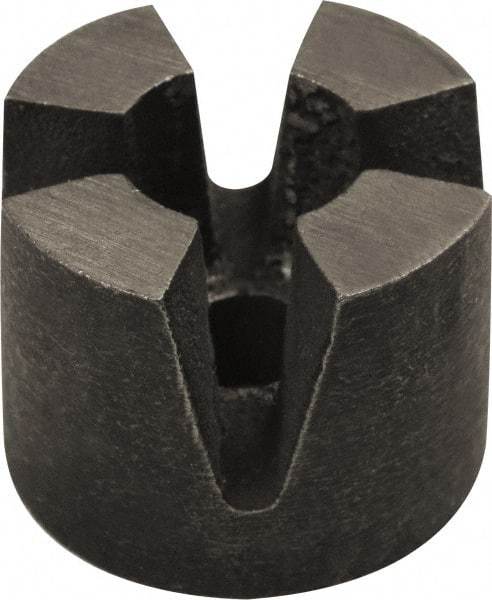

Mag-Mate - 1-1/4" OD x 3/4" High, 6 Pole Alnico Rotor Magnet - 17/64" Hole Diam, 50 Lb Max Holding Capacity, 800°F Max Operating Temp
Item #: 92684414
Brand: Mag-Mate
Model #: 5H177
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Outside Diameter (mm) | 32.00 |
| Outside Diameter (Inch) | 1-1/4 |
| Outside Diameter (Decimal Inch) | 1.2500 |
| Height (Decimal Inch) | 0.7500 |
| Height (mm) | 19.00 |
| Height (Inch) | 3/4 |
| Number of Poles | 6 |
| Hole Diameter (Inch) | 17/64 |
| Hole Diameter (Decimal Inch) | 0.2650 |
| Hole Diameter (mm) | 6.75 |
| Maximum Pull Force (Lb.) | 50.00 |
| Magnet Material Grade | Alnico 5 |
| Maximum Operating Temperature (F) | 800.00 |
| Maximum Operating Temperature (C) | 427.00 |
| Includes | Magnet Keeper; Washer |
