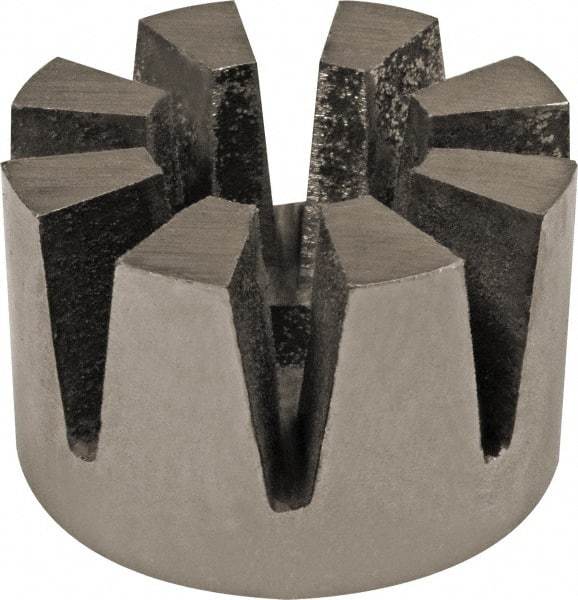

Mag-Mate - 2" OD x 1-1/4" High, 8 Pole Alnico Rotor Magnet - 1/2" Hole Diam, 140 Lb Max Holding Capacity, 800°F Max Operating Temp
Item #: 92684406
Brand: Mag-Mate
Model #: 5X13B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Outside Diameter (mm) | 51.00 |
| Outside Diameter (Inch) | 2 |
| Outside Diameter (Decimal Inch) | 2.0000 |
| Height (Decimal Inch) | 1.2500 |
| Height (mm) | 32.00 |
| Height (Inch) | 1-1/4 |
| Number of Poles | 8 |
| Hole Diameter (Inch) | 1/2 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Hole Diameter (mm) | 12.70 |
| Maximum Pull Force (Lb.) | 140.00 |
| Magnet Material Grade | Alnico 5 |
| Maximum Operating Temperature (F) | 800.00 |
| Maximum Operating Temperature (C) | 427.00 |
| Includes | Magnet Keeper; Washer |
