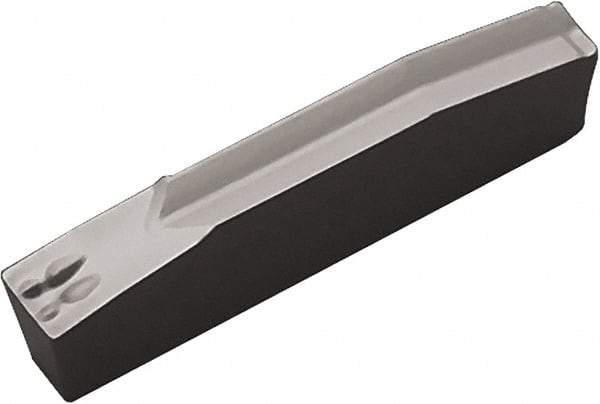

Kyocera - 3GMN Grade CR9025, 3mm Cutting Width Carbide Grooving Insert - Neutral, 0.2mm Corner Radius, Columnar TiCN/TiN Finish
Item #: 92606789
Brand: Kyocera
Model #: 8801460
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GMN |
| Insert Size | 3 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | CR9025 |
| Coating | Columnar TiCN/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.007874 |
| Coating Process | CVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GMN |
| Manufacturers Catalog Number | GMN3 |
| Insert Thickness (Decimal Inch) | 0.0906 |
| Insert Thickness (mm) | 2.3000 |
