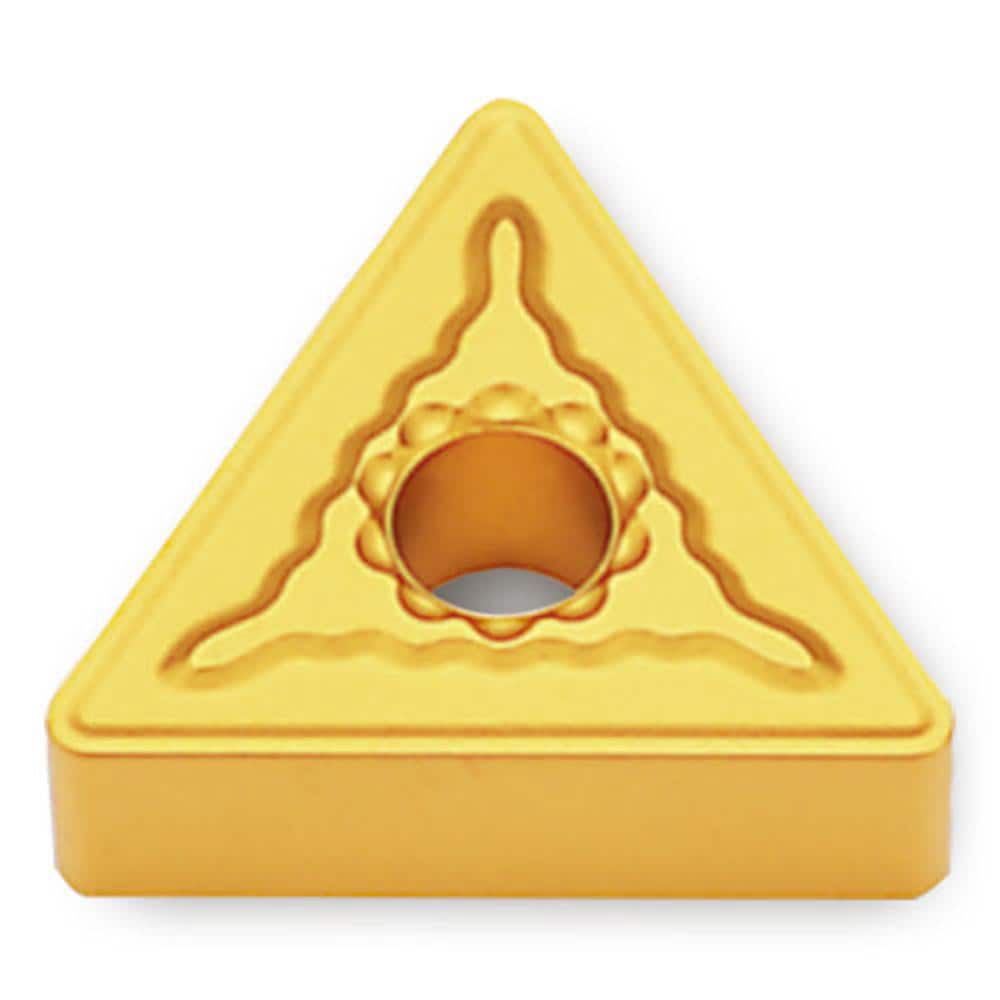

Turning Insert: TNMG432RT TT7015, Solid Carbide TiCN & Al2O3 Finish, Neutral, 0.8660″ Long, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, 60.0 ° N/A Triangle, Series TNMG
Item #: 92480383
Brand: Ingersoll Cutting Tools
Model #: 5523725
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 432 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT7015 |
| Maximum Depth of Cut (Decimal Inch) | 0.2760 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.8660 |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | TNMG432RTTT7015 |
| Iso Code | TNMG220408RT TT7015 |
| Chip Breaker | RT |
| Width (Decimal Inch - 4 Decimals) | 0.8660 |
| Coating/Finish | TiCN; Al2O3 |
