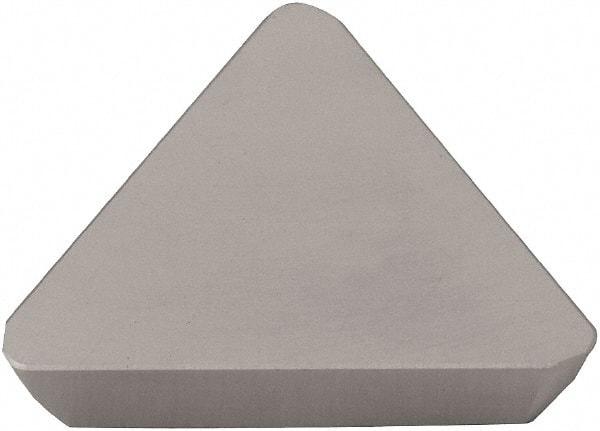

Kyocera - TEEN43 Grade TN100M Cermet Milling Insert - TiCN/NbC Finish, 3/16" Thick, 1/2" Inscribed Circle
Item #: 92079524
Brand: Kyocera
Model #: 8814101
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TEEN |
| Insert Size | 43 |
| Material | Cermet |
| Manufacturer's Grade | TN100M |
| Coating | TiCN/NbC |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (mm) | 4.76 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Relief Angle | 20.000 |
| Rake | Positive |
| Coating Process | Uncoated |
| Included Angle | 60 |
| Shape | Triangle |
| Insert Hand | Right Hand |
| Cutting Edge Style | Chamfered |
