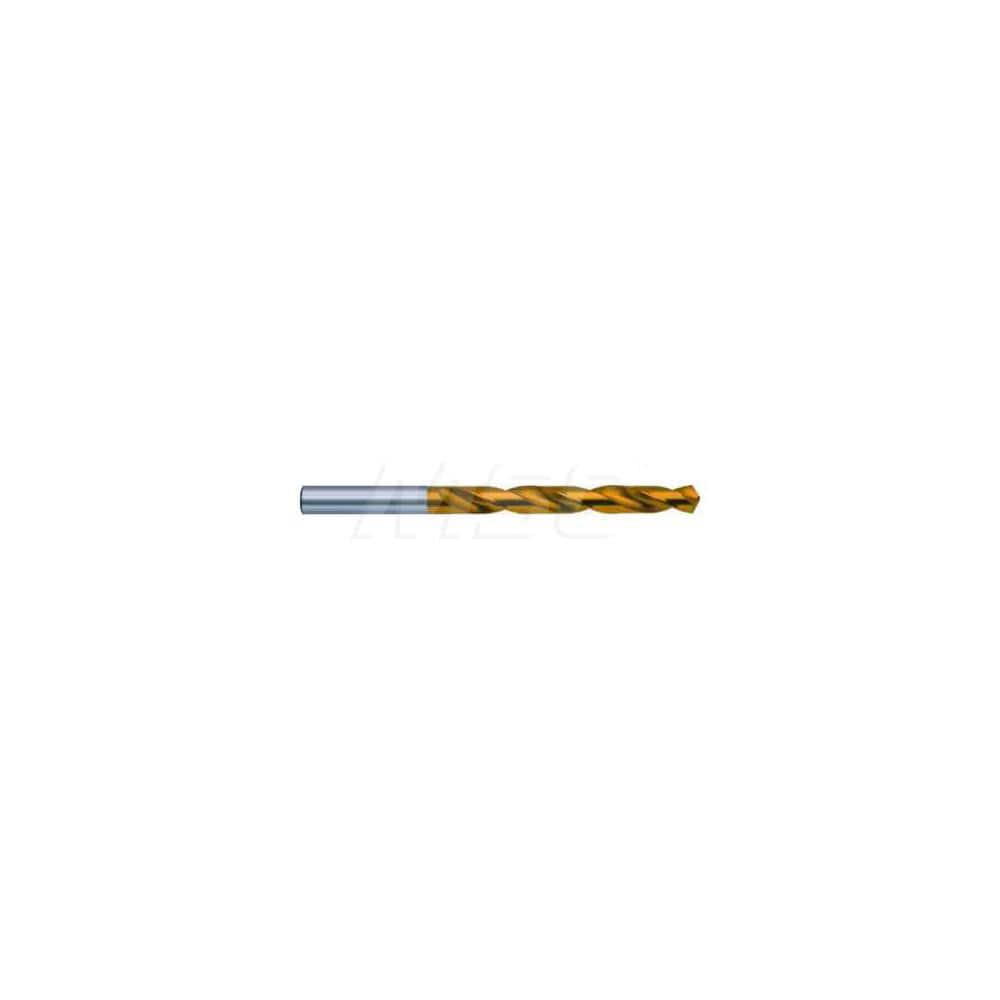

Jobber Length Drill Bit: 0.1969″ Dia, 118 °, Cobalt TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5519
Item #: 92068592
Brand: Guhring
Model #: 9055190050000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1969 |
| Drill Bit Size (mm) | 5.00 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiN |
| Drill Point Angle (Degrees) | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Four Facet; Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 86.00 |
| Flute Length (mm) | 52.00 |
| Series | 5519 |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 5.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.7520 |
| Maximum Drilling Depth (mm) | 44.50 |
| Shank Length (mm) | 34.00 |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Standards | DIN 338 |
| Specification Number | DIN 338 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 5.00 - 6.00 |
| Material Grade | M35 |
| Specification Designation | DIN |
