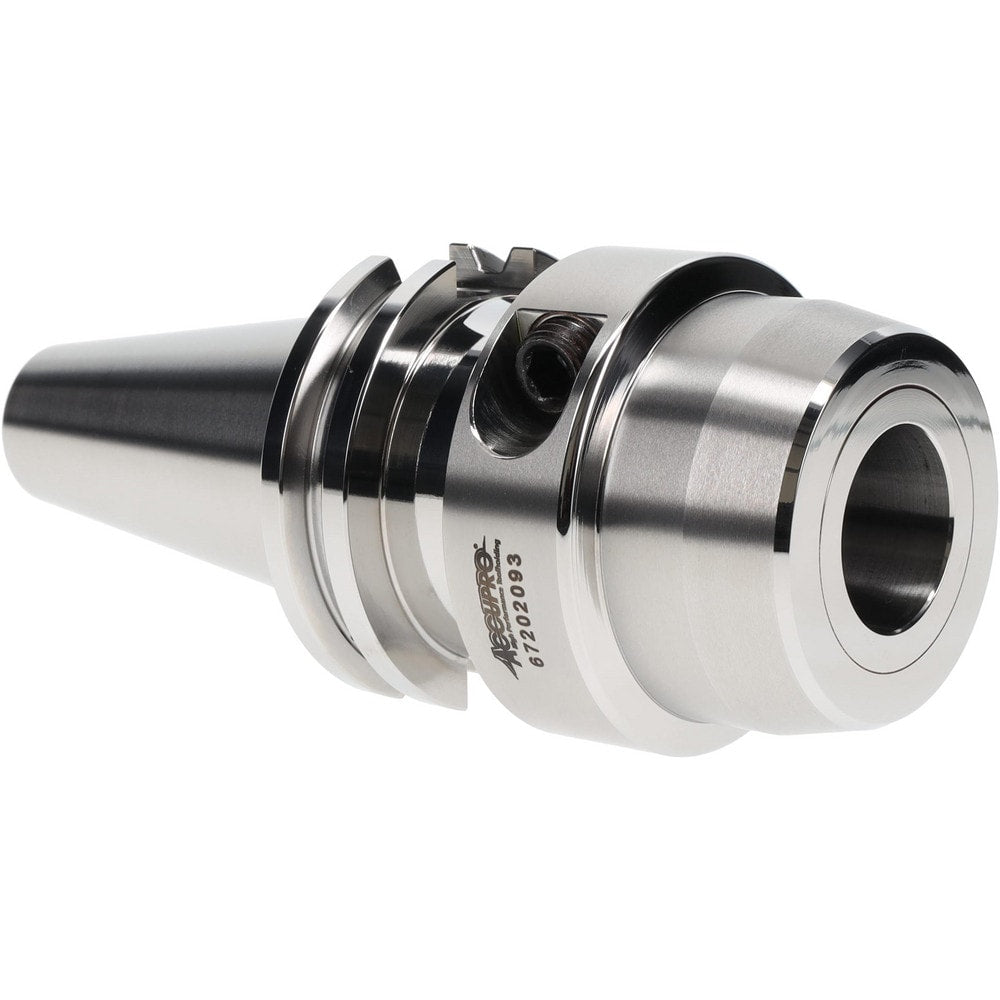

Hydraulic Tool Chuck: CAT40 Taper Shank, 1" Hole
Item #: 67202093
Brand: Accupro
Model #: 1527335
Product Specifications
| Shank Type | Taper |
| Connection Size | CAT40 |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 1 |
| Nose Diameter | 1-7/8 |
| Nose Diameter (Mm) ( - 2 Decimals) | 48.00 |
| Projection | 3-3/16 |
| Clamping Depth (mm) | 57.00 |
| Balanced To Rpm | 25000 |
| TIR (Decimal Inch) | 0.000010 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 4.9400 |
| Body Diameter (Decimal Inch) | 2.4606 |
| Projection (Decimal Inch) | 3.1900 |
| UNSPSC Code | 27112800 |
| Shank Type | Taper |
| Connection Size | CAT40 |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 1 |
| Nose Diameter | 1-7/8 |
| Nose Diameter (Mm) ( - 2 Decimals) | 48.00 |
| Projection | 3-3/16 |
| Clamping Depth (mm) | 57.00 |
| Balanced To Rpm | 25000 |
| TIR (Decimal Inch) | 0.000010 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 4.9400 |
| Body Diameter (Decimal Inch) | 2.4606 |
| Projection (Decimal Inch) | 3.1900 |
| UNSPSC Code | 27112800 |
| MSC Part # | 67202093 |
| Mfr Part # | 1527335 |
