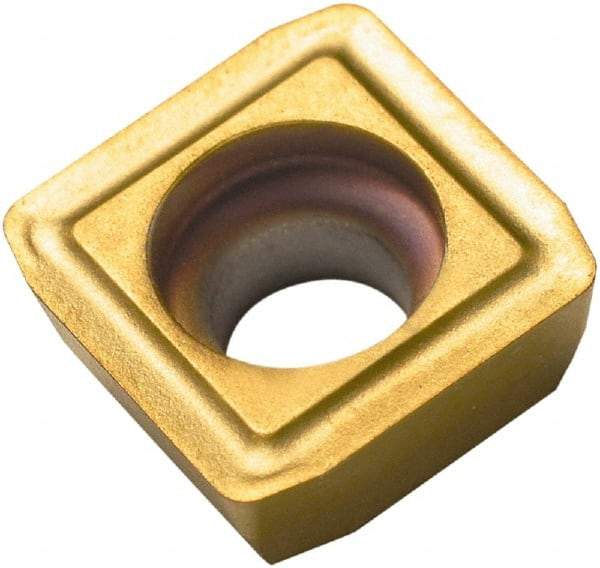

Komet - SOEX07T308 33 Grade BK8425 Carbide Indexable Drill Insert - TiAlN/TiN Finish, Square, 5/16" Inscribed Circle
Item #: 91867028
Brand: Komet
Model #: W8323330088425
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | SOEX |
| Insert Size | 07T308 |
| Material | Carbide |
| Manufacturer's Grade | BK8425 |
| Inscribed Circle (mm) | 7.94 |
| Inscribed Circle (Decimal Inch) | 0.3126 |
| Thickness (mm) | 3.58 |
| Thickness (Decimal Inch) | 0.1409 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Square |
| Relief Angle | 8 |
| Included Angle | 90 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | 33 |
