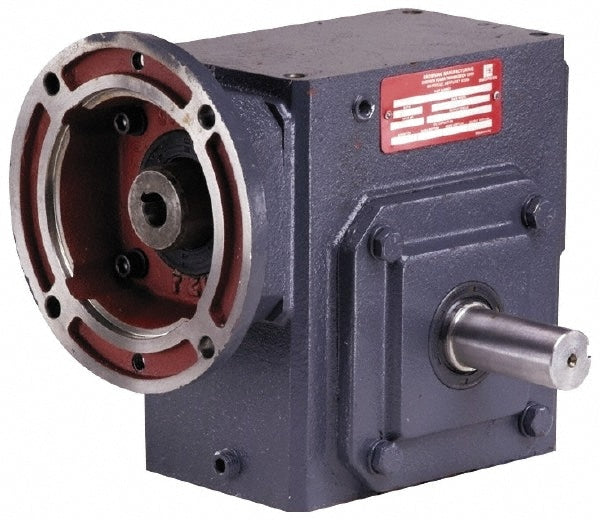

Speed Reducer: 5 hp Max Input
Item #: 08436487
Brand: Morse
Model #: XI1197
Product Specifications
| Centerline Distance | 3.2500 |
| Shaft Type | Single |
| Ratio | 30:1 |
| Maximum Input Horsepower | 5.00 |
| Nema/Iec Frame Size | 180TC NEMA |
| Minimum Torque (In/Lb) | 2415.0 |
| Maximum Torque (In/Lb.) | 2415.0 |
| Bore Diameter (Decimal Inch) | 1.1250 |
| Shaft Diameter (Decimal Inch) | 1.3750 |
| Minimum Input Horsepower | 3.00 |
| Output RPM at 1750 Input | 58.0 |
| Torque Output (In/Lb) with 5 Horsepower Motor @ 1750 | 2415 |
| Torque Output (In/Lb) with 3 Horsepower Motor @ 1750 | 2415 |
| Height (Decimal Inch) | 9.3800 |
| Length (Decimal Inch - 4 Decimals) | 8.5000 |
| Width (Decimal Inch - 4 Decimals) | 5.0000 |
| UNSPSC Code | 26111500 |
