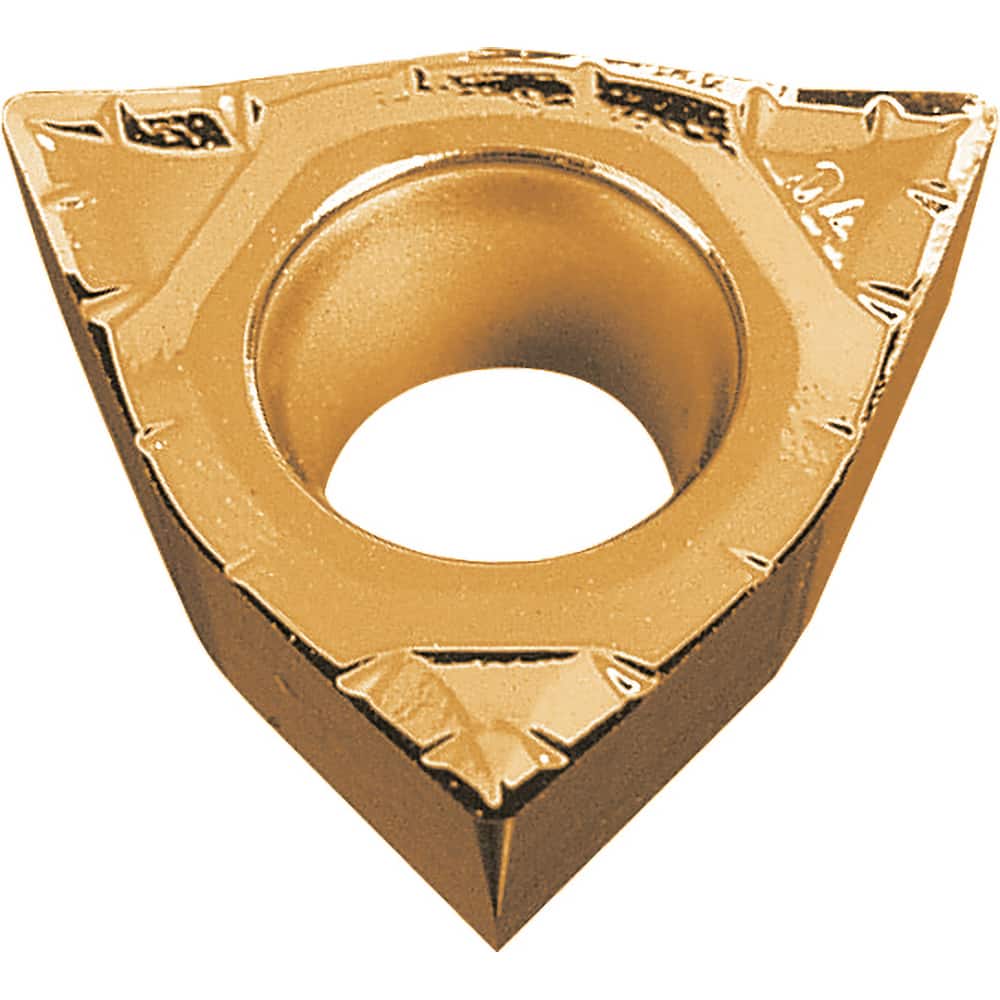

WCGT431FN-ACB AK20 Carbide Turning Insert Uncoated, Neutral, 8.72mm Long, 12.7mm Inscribed Circle, 0.4mm Corner Radius, 4.76mm Thick, 80° Trigon
Item #: 91304113
Brand: Arno
Model #: 29612
Product Specifications
| Insert Style | WCGT |
| Insert Shape Code | W |
| Insert Size Code | 431 |
| Insert Shape | Trigon |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AK20 |
| Maximum Depth of Cut (mm) | 4.00 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Corner Radius (mm) | 0.40 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (mm) | 8.72 |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | S; K |
| Iso Code | WCGT 080404FN-ACB AK20 |
| Manufacturers Catalog Number | WCGT 080404FN-ACB |
| Cutting Direction | Neutral |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | ACB |
| Cutting Edge Style | Sharp |
| Style | WCGT |
| Industry Standard Number | WCGT 080404FN-ACB AK20 |
| Width (Mm - 2 Decimals) | 12.70 |
| Multi-Use Tool | Yes |
| Coating/Finish | Uncoated |
| Multi-Use Application | Machining; Turning |
 | |
| MSC Part # | 91304113 |
| Mfr Part # | 29612 |
| Country of OriginCountry of Origin is subject to change | Germany |
