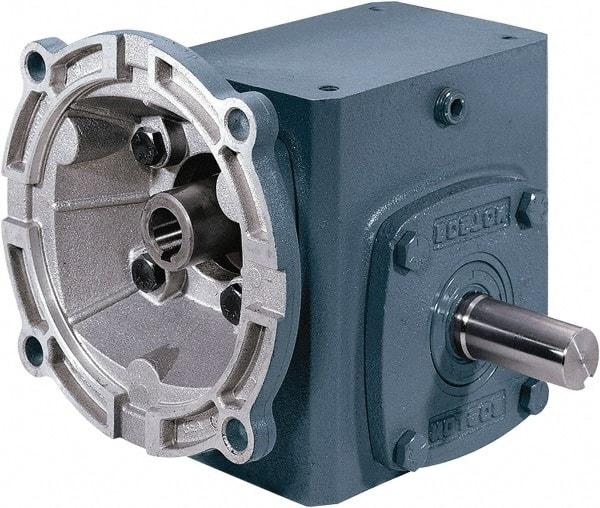

Boston Gear - 1 Centerline Distance, 10:1, 175 RPM Output, 0.44 Input Horsepower, 138 Lbs. Max Torque, Speed Reducer - Part No. F710-10-B5-J, 1/2" Shaft Diam, Single Shaft Right, 5/8" Bore, 2.31" High, 56C NEMA
Item #: 91229526
Brand: Boston Gear
Model #: 59831
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 1.000 |
| Ratio | 10:1 |
| NEMA Size | 56C |
| PartNo | F710-10-B5-J |
| Shaft Style | Single Shaft Right |
| Bore Size (Decimal Inch) | 0.625 |
| Shaft Diameter (Decimal Inch) | 0.5000 |
| Height (Inch) | 2.31 |
| Maximum Torque Inch/Lbs (Pounds) | 138.00 |
| Maximum Input Horsepower | 0.44 |
| Output RPM at 1750 Input | 175.0 |
