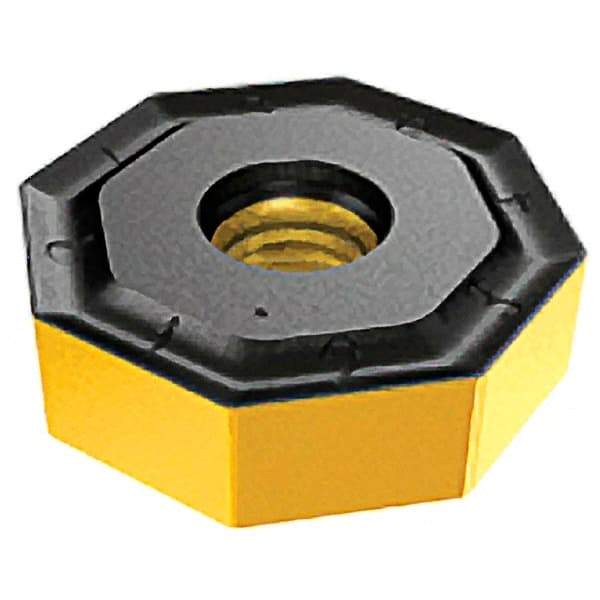

Iscar - ONMU080608 MM Grade IC328 Carbide Milling Insert - TiCN Finish, 0.2362" Thick, 0.7953" Inscribed Circle, 0.8mm Corner Radius
Item #: 91172296
Brand: Iscar
Model #: 5604600
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONMU |
| Insert Size | 080608 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Inscribed Circle (Decimal Inch) | 0.7953 |
| Thickness (Decimal Inch) | 0.2362 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Rake Angle | 24 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| ISO Number | ONMU 080608-TN-MM |
