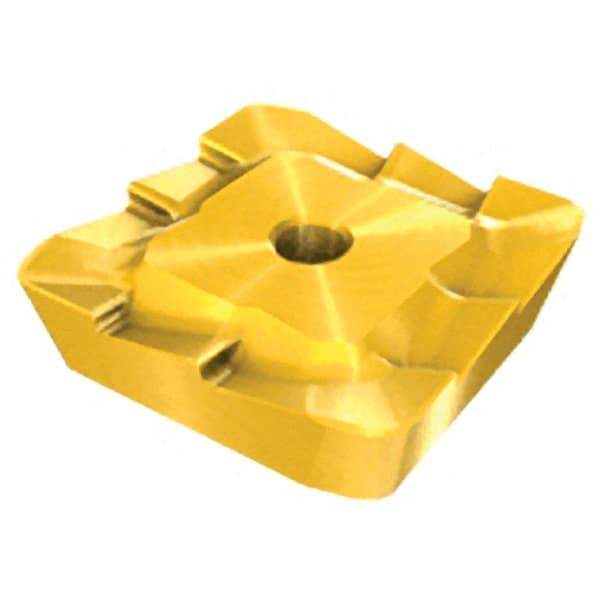

Iscar - SPKR53 HS Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.189" Thick, 0.623" Inscribed Circle
Item #: 91169987
Brand: Iscar
Model #: 5604722
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPKR |
| Insert Size | 53 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.6230 |
| Thickness (Decimal Inch) | 0.1890 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | HS |
| Maximum Depth of Cut (mm) | 12.24 |
| Maximum Depth of Cut (Decimal Inch) | 0.4820 |
| Manufacturers Catalog Number | SPKR 53EDTR-HS |
