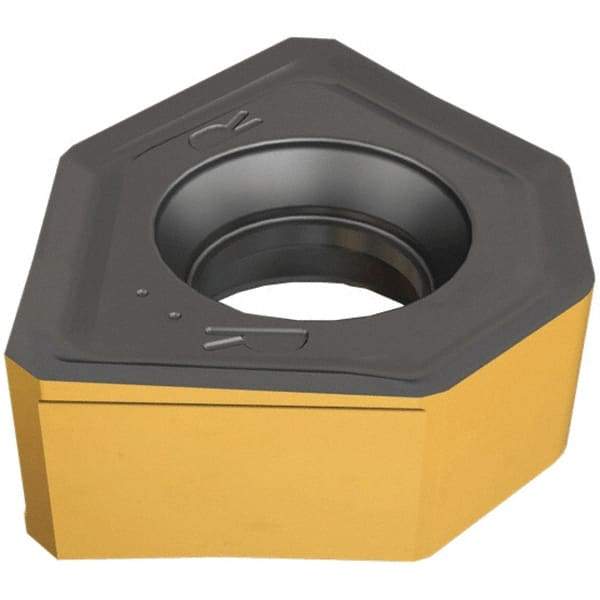

Iscar - ONHU0505 Grade IC810 Carbide Milling Insert - AlTiN/TiN Finish, 0.193" Thick, 13mm Inscribed Circle
Item #: 91169037
Brand: Iscar
Model #: 5606285
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONHU |
| Insert Size | 0505 |
| Material | Carbide |
| Manufacturer's Grade | IC810 |
| Coating | AlTiN/TiN |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5120 |
| Thickness (Decimal Inch) | 0.1930 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 2.00 |
| ISO Number | ONHU 0505ANN-W |
