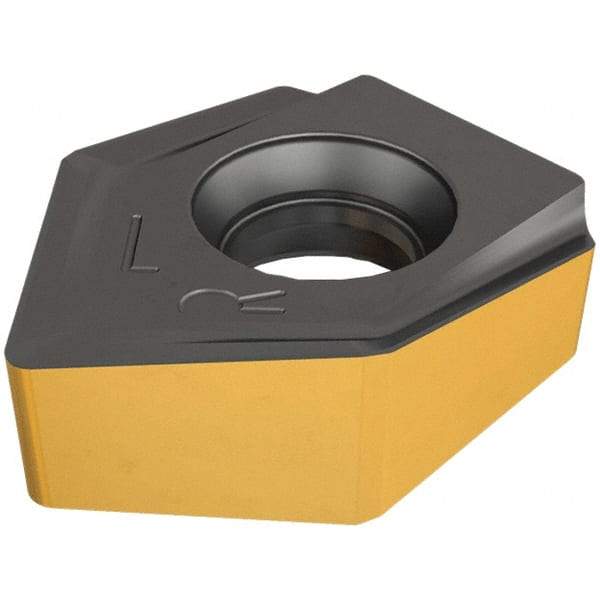

Iscar - S845 SNHU1305 Grade IC810 Carbide Milling Insert - TiAlN Finish, 0.2323" Thick, 13mm Inscribed Circle
Item #: 91169029
Brand: Iscar
Model #: 5606301
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | S845 SNHU |
| Insert Size | 1305 |
| Material | Carbide |
| Manufacturer's Grade | IC810 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5120 |
| Thickness (Decimal Inch) | 0.2323 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 3.00 |
| ISO Number | S845 SNMU 1305ANN-W |
