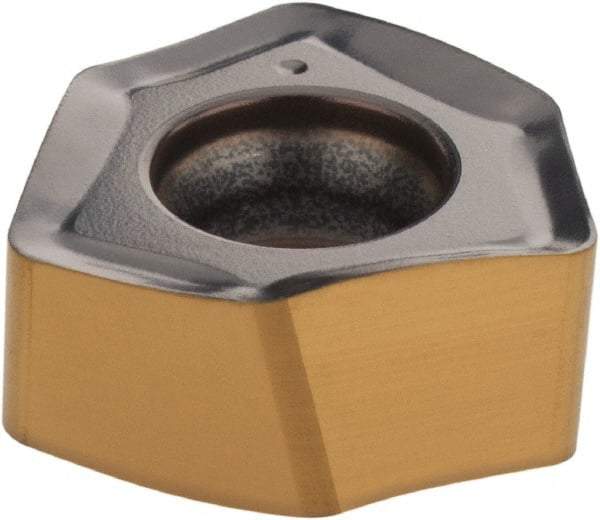

Iscar - H600 WXCU080612 HP Grade IC380 Carbide Milling Insert - TiCN/TiN Finish, 0.2677" Thick, 0.521" Inscribed Circle, 1.2mm Corner Radius
Item #: 91160721
Brand: Iscar
Model #: 5681450
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H600 WXCU |
| Insert Size | 080612 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC380 |
| Coating | TiCN/TiN |
| Length (Decimal Inch) | 0.3465 |
| Inscribed Circle (Decimal Inch) | 0.5210 |
| Thickness (Decimal Inch) | 0.2677 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Rake Angle | 26 |
| Coating Process | PVD |
| Included Angle | 80 |
| Shape | Trigon |
| Chipbreaker | HP |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| ISO Number | H600 WXCU 080612HP |
