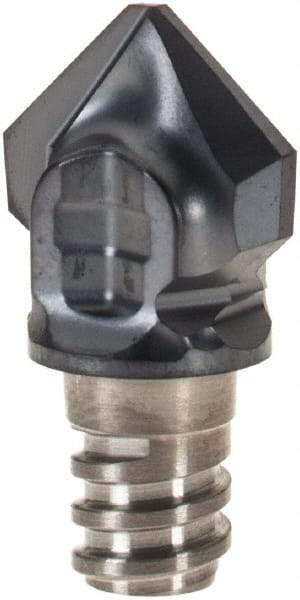

Iscar - MM HDF Grade IC908 Carbide Chamfer Milling Tip Insert - TiAlN Finish, 2 Flutes, 9.8mm Cutting Diam, 10.8mm Extension
Item #: 91160002
Brand: Iscar
Model #: 5605163
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM HDF |
| Milling Tip Type | Chamfer Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 9.80 |
| Cutting Diameter (Decimal Inch) | 0.3860 |
| Manufacturer's Grade | IC908 |
| Number of Flutes | 2 |
| Coating | TiAlN |
| Milling Tip Full Description | Chamfering |
| Coating Process | PVD |
| Extension From Holder (mm) | 10.80 |
| Extension From Holder (Decimal Inch) | 0.4250 |
| Thread Size | T05 |
| Included Angle | 90 |
