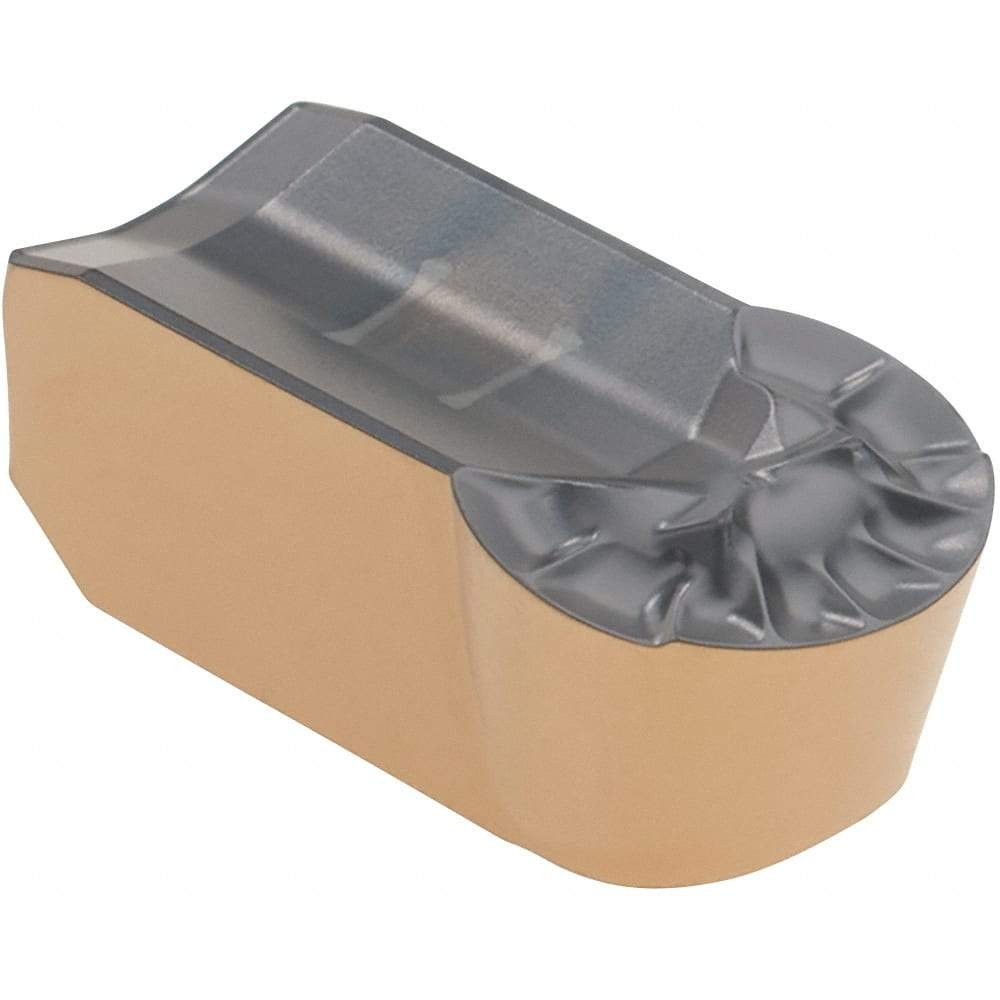

Iscar - 1260GIMY Grade IC808, 12mm Cutting Width Carbide Grooving Insert - 6mm Max Depth of Cut, Neutral, 6mm Corner Radius, TiAlN Finish
Item #: 91145334
Brand: Iscar
Model #: 6404553
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIMY |
| Insert Size | 1260 |
| Material | Carbide |
| Cutting Width (mm) | 12.00 |
| Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling |
| Corner Radius (mm) | 6.00 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Coating Process | PVD |
| Overall Length (mm) | 24.00 |
| Overall Length (Decimal Inch) | 0.9450 |
| Series | Cut Grip |
