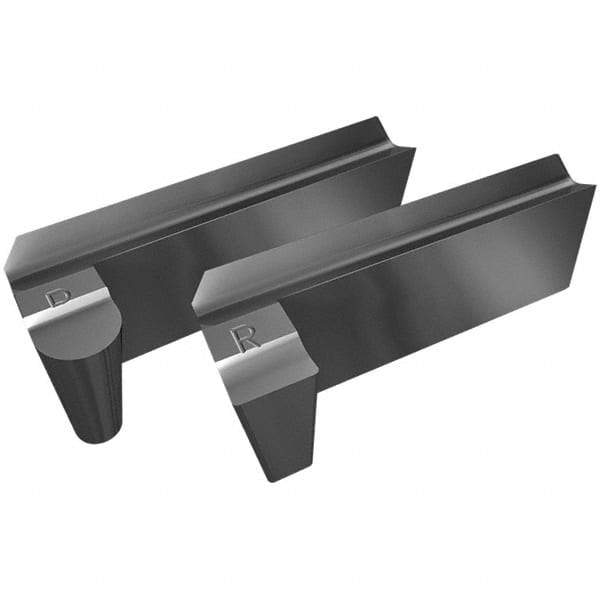

Iscar - 12115T6LPGIR P Grade IC907, 5mm Cutting Width Carbide Grooving Insert - 6.5mm Max Depth of Cut, Right Hand, 0.4mm Corner Radius, TiAlN Finish
Item #: 91136630
Brand: Iscar
Model #: 6405166
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LPGIR |
| Insert Size | 12115T6 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1970 |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC907 |
| Coating | TiAlN |
| Insert Hand | Right Hand |
| Chipbreaker | P |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.1810 |
| Series | Cut Grip |
