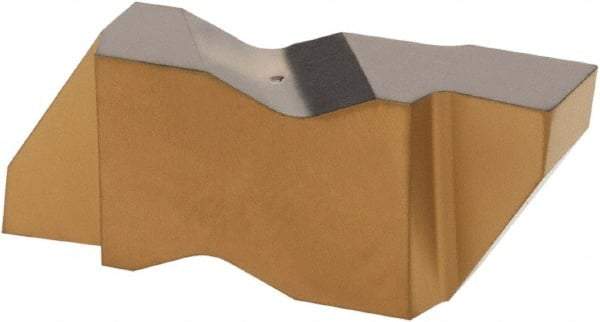

Iscar - 3156ING Grade IC808, 3.96mm Cutting Width Carbide Grooving Insert - 0.15" Max Depth of Cut, Right Hand, 0.008" Corner Radius, TiAlN Finish
Item #: 91136093
Brand: Iscar
Model #: 6405392
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ING |
| Insert Size | 3156 |
| Material | Carbide |
| Cutting Width (mm) | 3.96 |
| Cutting Width (Decimal Inch) | 0.1560 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Insert Hand | Right Hand |
| Relief Angle | 3 |
| Insert Seat Size | 3 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.9000 |
| Series | Notch-Grip |
| Rake Angle | 10 |
