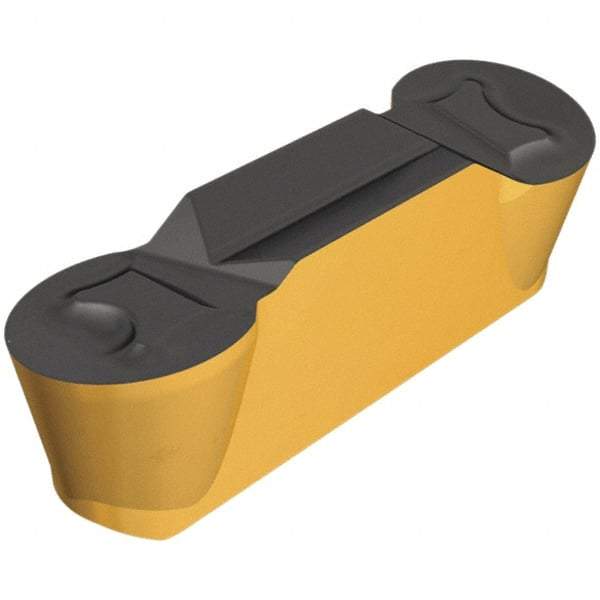

Iscar - 4020HFPR Grade IC5010, 4mm Cutting Width Carbide Grooving Insert - 2mm Max Depth of Cut, Right Hand, 2mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 91112656
Brand: Iscar
Model #: 6200389
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HFPR |
| Insert Size | 4020 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | IC5010 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Right Hand |
| Relief Angle | 7 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Coating Process | CVD |
| Overall Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 0.7480 |
| Series | Heliface |
