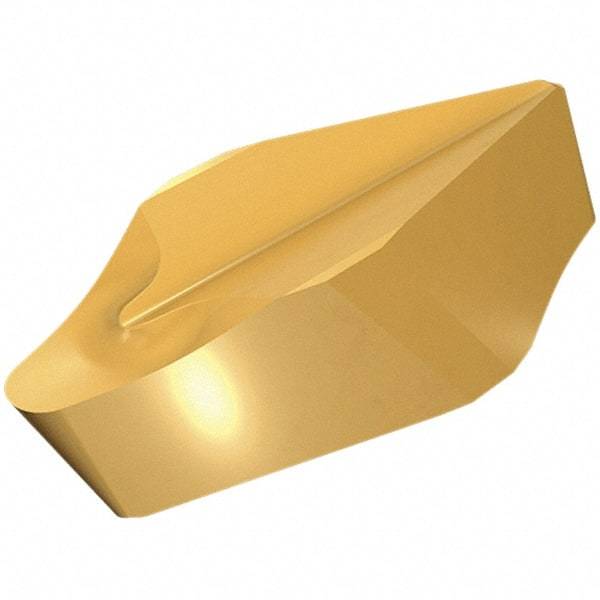

Iscar - 35V120GIPA V Grade ID5, 8mm Cutting Width Polycrystalline Diamond (PCD) Grooving Insert - 4.8mm Max Depth of Cut, Neutral, 1.2mm Corner Radius, Uncoated
Item #: 91105635
Brand: Iscar
Model #: 6404000
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | GIPA |
| Insert Size | 35V120 |
| Material | Polycrystalline Diamond (PCD) |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 4.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1890 |
| Manufacturer's Grade | ID5 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | V |
| Multi-Use Tool | No |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Series | Cut Grip |
| Included Angle | 36 |
