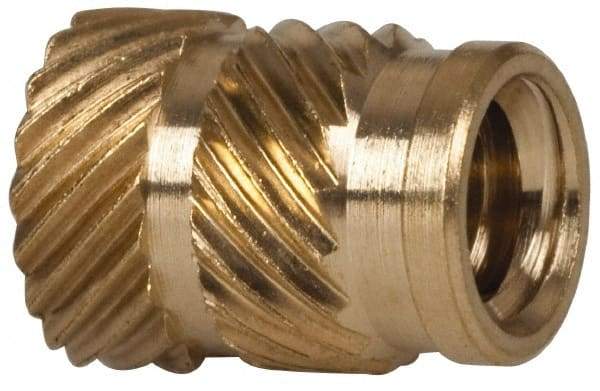

E-Z LOK - 1/4" Drill, 10 24 UNC, 0.278" Diam, Brass Unheaded Heat Installed Threaded Insert - 1/4" Hole, 3/8" OAL
Item #: 91093716
Brand: E-Z LOK
Model #: HI-124-WH
Exact Tooling IR#: 04
Features and Benefits
Unheaded types do not have a flange. They sit flush with the workpiece material, which creates a smooth, flush finish.
Brass is an alloy of copper and zinc that is durable, nonmagnetic and conductive.
| Product Specifications | |
|---|---|
| Type | Unheaded |
| For Material Type | Thermoplastic |
| System of Measurement | Inch |
| Thread Size (Inch) | #10-24 |
| Material | Brass |
| Overall Length (Decimal Inch) | 0.3750 |
| Insert Diameter (Decimal Inch) | 0.2780 |
| Hole Diameter (Decimal Inch) | 0.2520 |
| Pilot Diameter (Decimal Inch) | 0.2770 |
| Minimum Wall Thickness (Decimal Inch) | 0.1020 |
| Minimum Grip (Decimal Inch) | 0.1020 |
| Drill Size (Inch) | 1/4 |
| Thread Standard | UNC |
