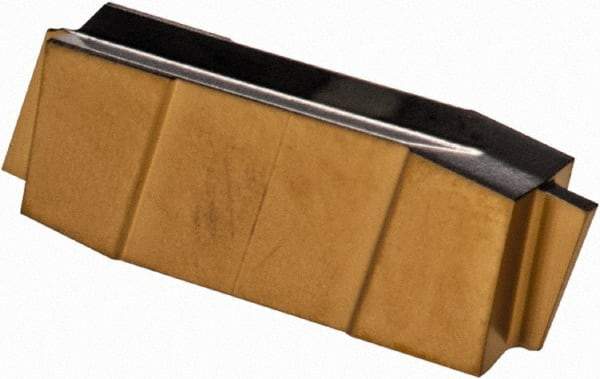

Iscar - 050000GIP Grade IC808, 0.51mm Cutting Width Carbide Grooving Insert - 0.99mm Max Depth of Cut, Neutral, TiN/TiAlN Finish
Item #: 89909824
Brand: Iscar
Model #: 6404398
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIP |
| Insert Size | 050000 |
| Material | Carbide |
| Cutting Width (mm) | 0.51 |
| Cutting Width (Decimal Inch) | 0.0200 |
| Maximum Depth of Cut (mm) | 0.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiN/TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1970 |
| Relief Angle | 7 |
| Multi-Use Tool | No |
| Coating Process | PVD |
| Overall Length (mm) | 15.29 |
| Overall Length (Decimal Inch) | 0.6020 |
| Series | Cut Grip |
| ISO Number | GIP 0.50-0.00 |
| Manufacturers Catalog Number | GIP 0.50-0.00 |
