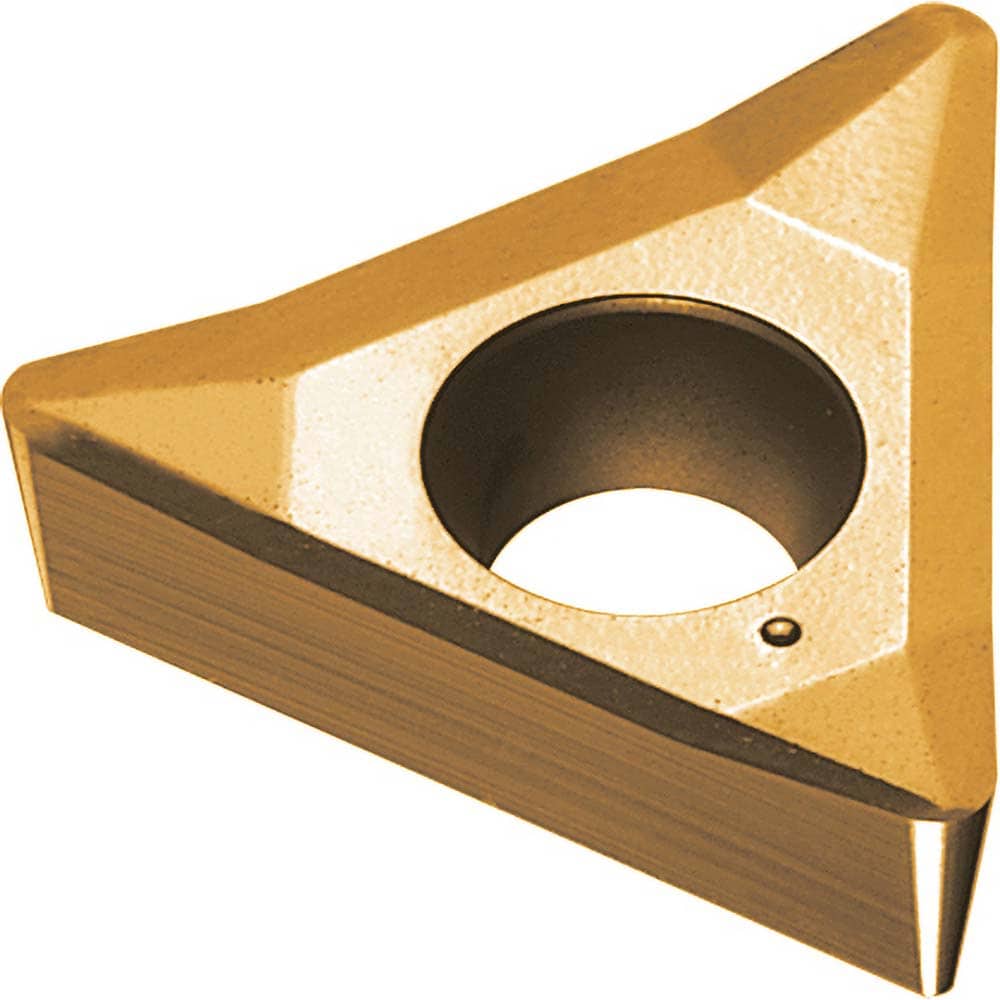

Turning Insert: TCGT21.50.5FN-ALU AK10, Carbide
Item #: 55142228
Brand: Arno
Model #: 25193
Product Specifications
| ANSI Insert Code | TCGT21.50.5 |
| ISO Insert Code | TCGT110202 |
| Relief Angle | 7 |
| Insert Style | TCGT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 60 |
| Manufacturer Grade | AK10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | TCGT |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Fractional Inch) | 5/64 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4331 |
| Insert Length (mm) | 11.00 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K |
| Iso Code | TCGT 110202FN-ALU |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 25193 |
| Material Grade | N25; N05 |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | ALU |
| Cutting Edge Style | Sharp |
| Industry Standard Number | TCGT21.50.5FN-ALU |
| Width (Decimal Inch - 4 Decimals) | 0.4331 |
| Width (mm - 2 Decimals) | 6.35 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 21.50.5 |
| ISO Size Code | 110202 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.50.5 |
| ANSI Insert Code | TCGT21.50.5 |
| ISO Insert Code | TCGT110202 |
| Relief Angle | 7 |
| Insert Style | TCGT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 60 |
| Manufacturer Grade | AK10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | TCGT |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Fractional Inch) | 5/64 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4331 |
| Insert Length (mm) | 11.00 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K |
| Iso Code | TCGT 110202FN-ALU |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 25193 |
| Material Grade | N25; N05 |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | ALU |
| Cutting Edge Style | Sharp |
| Industry Standard Number | TCGT21.50.5FN-ALU |
| Width (Decimal Inch - 4 Decimals) | 0.4331 |
| Width (mm - 2 Decimals) | 6.35 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 21.50.5 |
| ISO Size Code | 110202 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.50.5 |
| MSC Part # | 55142228 |
| Mfr Part # | 25193 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
