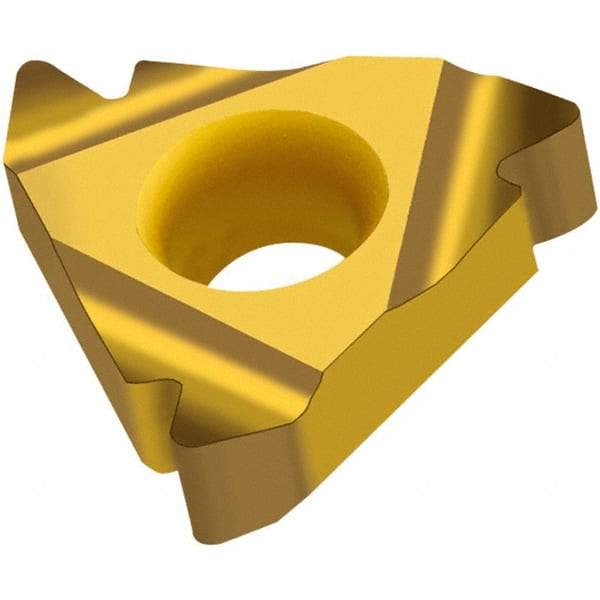

Walter - External Right Hand M (Metric 60°, MF 60°, UN 60°, UNC 60°, UNF 60°) Laydown Threading Insert - Grade WXM20, TiCN Coated 12.7mm Inscribed Circle
Item #: 89180657
Brand: Walter
Model #: 5894295
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | M (Metric 60 ), MF 60 , UN 60 , UNC 60 , UNF 60 |
| Manufacturer's Grade | WXM20 |
| External Threads Per Inch | 0.000 ;5 to 7 |
| External Pitch (mm) | 3.5 to 5 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Thickness (Decimal Inch) | 0.0000 |
| Thickness (mm) | 0.00 |
| Included Angle of Threading Tip | 60 |
| Hole Diameter (mm) | 4.85 |
| Hole Diameter (Decimal Inch) | 0.1910 |
| Coating | TiCN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.53 |
| Corner Radius (Decimal Inch) | 0.0210 |
| Chipbreaker | A27 |
| Number of Teeth Per Side | 1 |
| Series | NTS_E_TEIL_60 |
