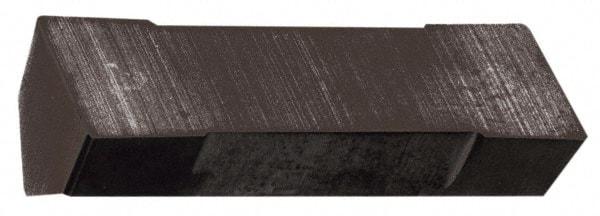

Kyocera - 125DB Grade A65, 3/16" Cutting Width Ceramic Grooving Insert - Neutral, 0.015" Corner Radius, Al2O3/TiC Finish
Item #: 88240577
Brand: Kyocera
Model #: 8800821
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | DB |
| Insert Size | 125 |
| Material | Ceramic |
| Cutting Width (Decimal Inch) | 0.1870 |
| Material Grade | C4 |
| Manufacturer's Grade | A65 |
| Coating | Al2O3/TiC |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.2500 |
| Lead Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0150 |
| Overall Length (Decimal Inch) | 1.1250 |
