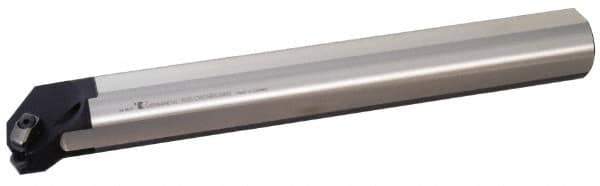

Kennametal - 65mm Min Bore Diam, 16" OAL, 2" Shank Diam, A-CRGN-MN Indexable Boring Bar - RN.. Insert, Clamp Holding Method
Item #: 88230339
Brand: Kennametal
Model #: 1558021
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-CRGN-MN |
| Series | Top Notch |
| Minimum Bore Diameter (mm) | 65.00 |
| Minimum Bore Diameter (Decimal Inch) | 2.5590 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 406.40 |
| Overall Length (Inch) | 16 |
| Overall Length (Decimal Inch) | 16.0000 |
| Shank Diameter (mm) | 50.80 |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Insert Compatibility | RN.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 1.2810 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | RN.. 45.. |
| Toolholder Material | Steel |
