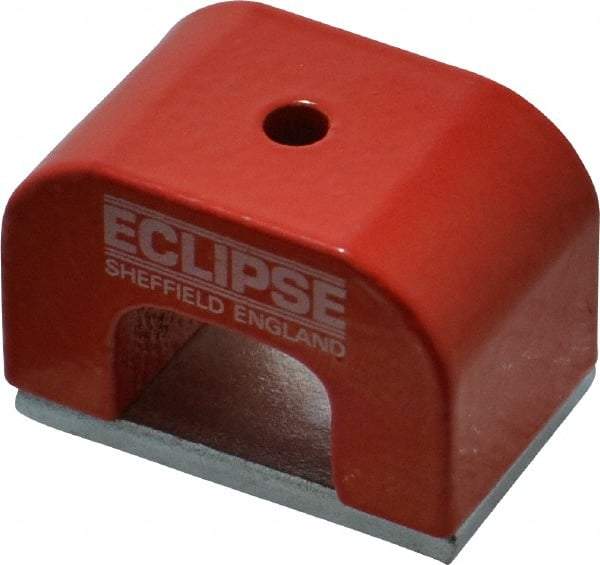

Eclipse - 1 Hole, 3/16" Hole Diam, 1" Overall Width, 1-37/64" Deep, 1" High, Alnico Power Magnets - 0.39" Pole Width, 550°C Max Operating Temp, Grade 5 Alnico
Item #: 87954483
Brand: Eclipse
Model #: M6770B/MSC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Overall Width (mm) | 25.40 |
| Overall Width (Inch) | 1 |
| Overall Width (Decimal Inch) | 1.0000 |
| Height (Decimal Inch) | 1.0000 |
| Height (mm) | 25.40 |
| Height (Inch) | 1 |
| Depth (Decimal Inch) | 1.5781 |
| Depth (mm) | 40.08 |
| Depth (Inch) | 1-37/64 |
| Maximum Pull Force (Lb.) | 19.84 |
| Maximum Pull Force (kg) | 9.00 |
| Gap Width (mm) | 20.24 |
| Gap Width (Inch) | 51/64 |
| Gap Width (Decimal Inch) | 0.7969 |
| Number of Holes | 1 |
| Hole Diameter (Inch) | 3/16 |
| Hole Diameter (mm) | 4.76 |
| Pole Width (mm) | 9.91 |
| Pole Width (Decimal Inch) | 0.3900 |
| Magnet Material Grade | Alnico 5 |
| Maximum Operating Temperature (F) | 1022.00 |
| Maximum Operating Temperature (C) | 550.00 |
| Includes | Magnet Keeper |
