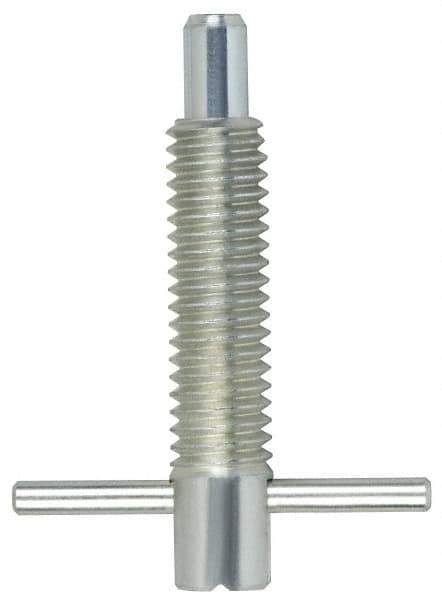

Vlier - M10x1.5 Thread, 2" Body Length, 3/8" Plunger Projection, 0.23" Plunger Diam, Stainless Steel, Locking T Handle Plunger - 1.2" Thread Length, 1-1/2" Handle Length, 1.7" Plunger Length, 2 Lb Initial End Force, 4 Lb Final End Force, Locking Element
Item #: 87881181
Brand: Vlier
Model #: SFRTM10P
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is made of iron and chromium and is resistant to rust and corrosion. It offers high tensile strength and can be used in several environments.
| Product Specifications | |
|---|---|
| Thread Size | M10x1.5 |
| Thread Length (Decimal Inch) | 1.2000 |
| Thread Length (mm) | 30.48 |
| Plunger Type | Locking |
| Body Length (mm) | 43.00 |
| Body Length (Decimal Inch) | 2.0000 |
| Plunger Projection (Decimal Inch) | 0.3750 |
| Plunger Projection (mm) | 9.50 |
| Plunger Diameter (mm) | 6.00 |
| Plunger Diameter (Decimal Inch) | 0.2300 |
| Locking Element | Yes |
| Initial End Force (N) | 9.00 |
| Initial End Force (Lb.) | 2.00 |
| Final End Force (N) | 17.80 |
| Final End Force (Lb.) | 4.00 |
| Plunger Length (Decimal Inch) | 1.7000 |
| Plunger Length (mm) | 43.18 |
| Head Diameter (mm) | 38.00 |
| Handle Width/Diameter (mm) | 3.30 |
| Handle Width/Diameter (Decimal Inch) | 0.1300 |
| Handle Length (mm) | 38.00 |
| Handle Length (Decimal Inch) | 1.5000 |
| Material | Stainless Steel |
